SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

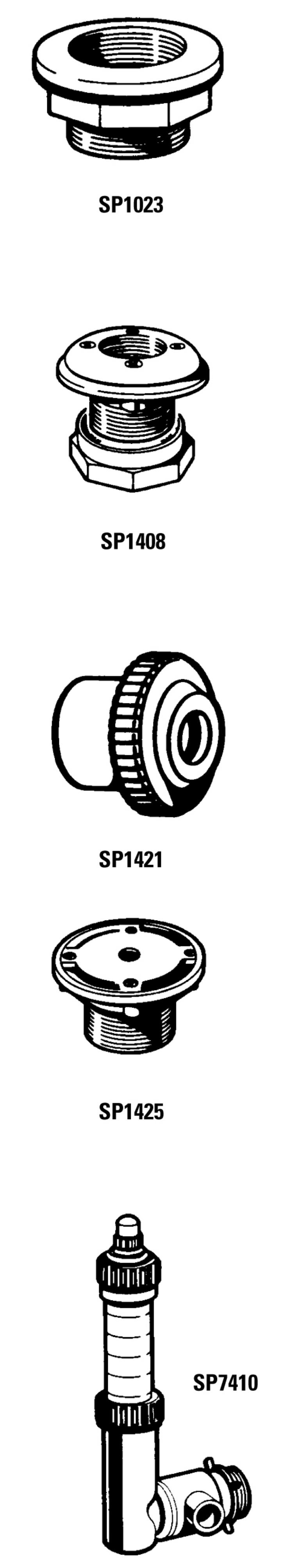

Here is the schematic view you requested:

Category: Hydro Fittings
Manufacturer name: Hayward
Model Name: SP1023, 1023G, 1024, 1025 Series

Hayward SP1023-1023G-1024-1025-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

SPX1023B Locknut, 2"" Yes 1 Day(s) $3.43

SPX1023Z3 Fiber Slip Washer Yes 1 Day(s) $1.14

SPX23Z12 Gasket (Set of 2) No N/A N/A N/A

SPX23Z2 Gasket, double-sided No N/A N/A N/A

SPX1025Z12 Gasket (Set of 2) - (SP1025) Yes 1 Day(s) $4.45

SPX1025Z3 Fiber Slip Washer - (SP1025) Yes 1 Day(s) $1.40

SPX1407D1 Locknut, 2 1/2"" - (SP1025) No N/A N/A N/A
