SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

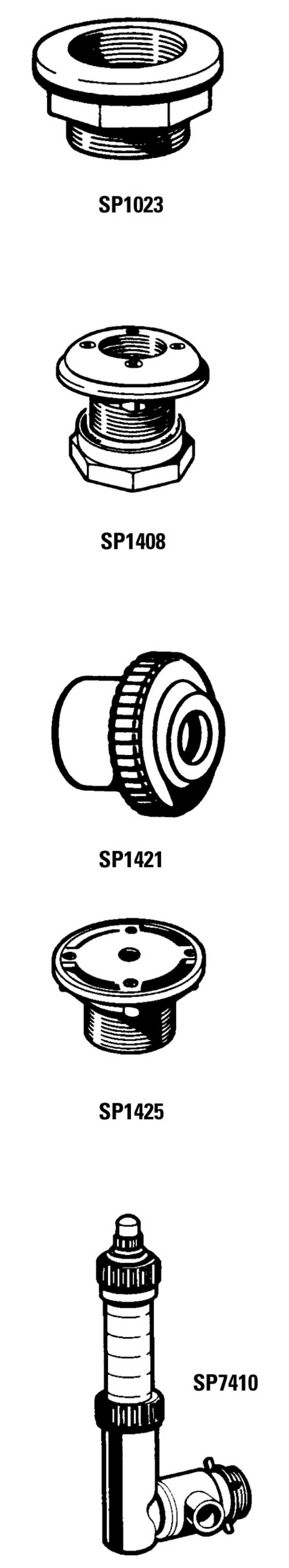

Here is the schematic view you requested:

Category: Hydro Fittings
Manufacturer name: Hayward
Model Name: SP1419, SP1420, SP1421 Series

Hayward SP1419-SP1420-SP1421-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

SPX1419B1 Ball Seat Yes 1 Day(s) $2.88

SPX1419C1 Ball - Slotted Yes 1 Day(s) $2.88

SPX1419C2 Ball 3/8"" Hole Yes 1 Day(s) $2.88

SPX1419C3 Ball 1/2"" Hole Yes 1 Day(s) $2.88

SPX1419C4 Ball 3/4"" Hole Yes 1 Day(s) $2.88

SPX1419C5 Ball 1"" Hole Yes 1 Day(s) $2.88

SPX1419D1 Lock Ring Yes 1 Day(s) $1.68

SPX1420A1 Rubber Flow Director Yes 1 Day(s) $3.22
