SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

Here is the schematic view you requested:

Category: Hydro Fittings
Manufacturer name: Hayward
Model Name: SP1423, 1424, 1425 Series

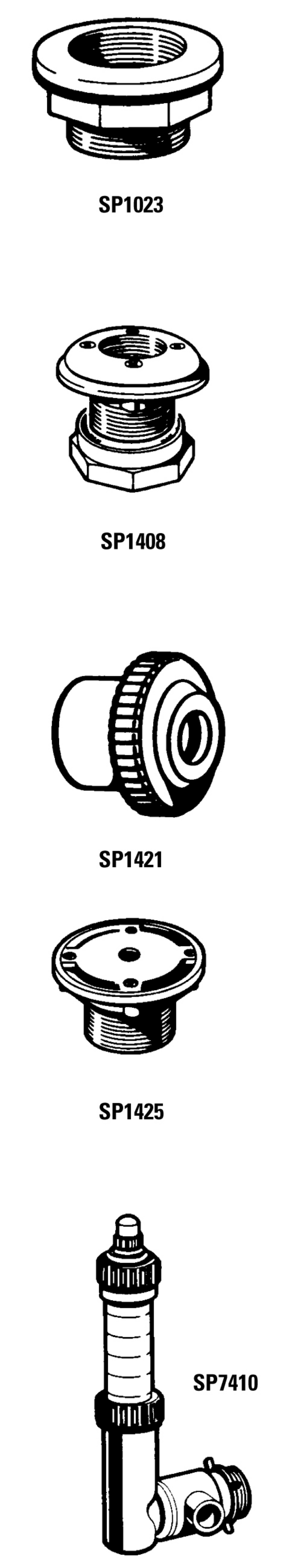

Hayward SP1423-1424-1425-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

SPX1425C Face Plate Grate (SP1423, 1424) Yes 1 Day(s) $3.43

SPX1425DA Spinner Valve Assembly (SP1424, 1425) Yes 1 Day(s) $5.40

SPX1425B Top Diffuser Plate (SP1425) Yes 1 Day(s) $4.26

SPX1425Z32 Face Plate Screw (Set of 2) (SP1423, 1424, 1425) Yes 1 Day(s) $1.83
