SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

Here is the schematic view you requested:

Category: Hydro Fittings
Manufacturer name: Hayward
Model Name: SP1430, 1431, 1432 Series Jet-Air Fittings

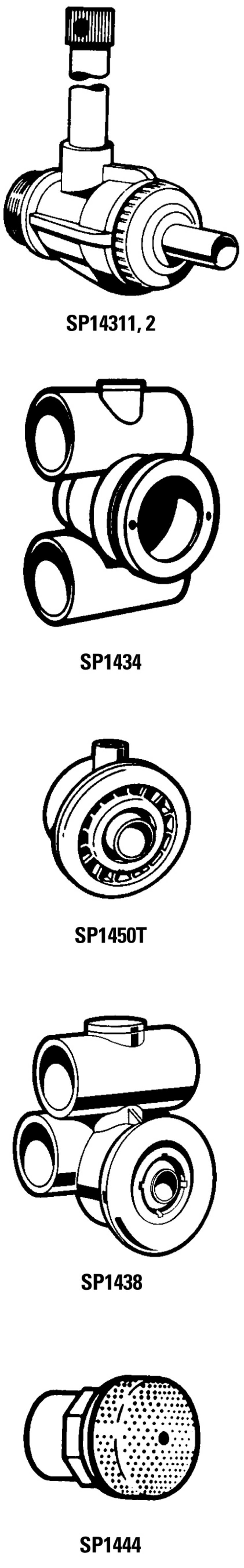

Hayward SP1430-1431-1432-Series-JetAir-Fittings replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

SPX1430B Small Nozzle (for SP1430) Yes 1 Day(s) $3.71

SPX14311S 1/2"" x 18"" Air Supply Tube (complete) Yes 1 Day(s) $11.12

SPX14312S 1/2"" x 24"" Air Supply Tube (complete) Yes 1 Day(s) $12.38

SPX1430Z1A Air Tube Adjustment Cap w/Air Tube Bushing Yes 1 Day(s) $5.30

SPX1430B1 SPA Insert Bushing Yes 1 Day(s) $1.83

SPX1432E Gasket (Mini-Jet) No N/A N/A N/A
