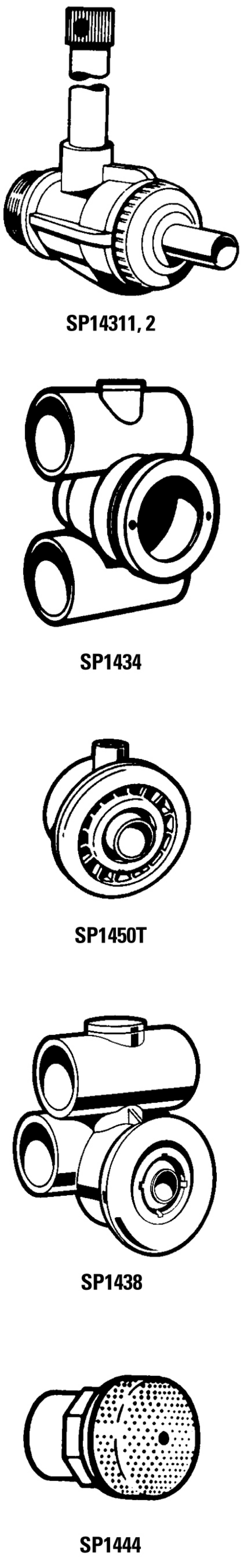

Here is the schematic view you requested:

Category: Hydro Fittings

Manufacturer name: Hayward

Model Name: SP1434, 1436, 1437 Series Jet-Air III Fittings



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
	SPX1434EA	Bulkhead Fitting w/Gasket	Yes	1 Day(s)	$6.47
	SPX1437C	Whirlpool Nozzle (SP1437)	No	N/A	N/A	N/A
	SPX1435BA	Jet Receiver only	No	N/A	N/A	N/A
	SPX1435D	Comfort-Flo Nozzle	No	N/A	N/A	N/A
	SPX1436DA	Pulse-Flo Assembly	No	N/A	N/A	N/A
	SPX1434ES	Escutcheon, Stainless Steel	No	N/A	N/A	N/A
	SPX1434J	O-Ring for Vari-Flo Nozzle	No	N/A	N/A	N/A
	SPX720PE2	Seal Ring (Set of 2)	No	N/A	N/A	N/A
	SPX1434JA	Seal Rings and O-Ring Kit	Yes	1 Day(s)	$5.15
	SPX1434DF	Lock Ring - for Ball Assembly w/Nozzle Retaining Clip	Yes	1 Day(s)	$6.83
	SPX1434BA	Vari-Flo Ball Jet/Nozzle - Adjustable	No	N/A	N/A	N/A
	SPX1437B	Nozzle Insert (SP1437)	No	N/A	N/A	N/A
