SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

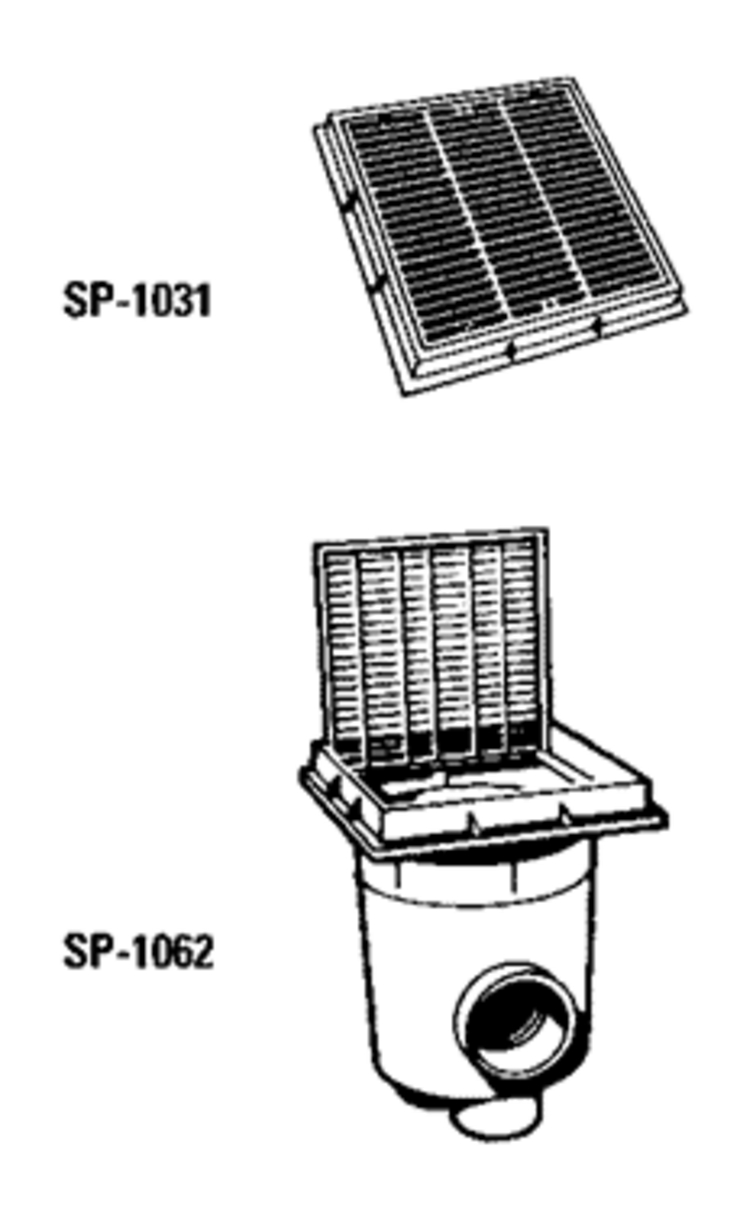

Here is the schematic view you requested:

Category: Main Drains and Grates
Manufacturer name: Hayward
Model Name: Square Frames & Grates

Hayward Square-Frames-Grates replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

SPX1031B 9"" Square Grate (use 4 for SP1033; 1976- ) (b) Yes 1 Day(s) N/A N/A

SPX1032A 12"" Square Frame Yes 1 Day(s) N/A N/A

SPX1032B 12"" Square Grate Yes 1 Day(s) N/A N/A

SPX1033A 18"" Square Frame No N/A N/A N/A

SPX1031Z1 Stainless Steel Screw, for SP1031, 1032, 1033 No N/A N/A N/A
