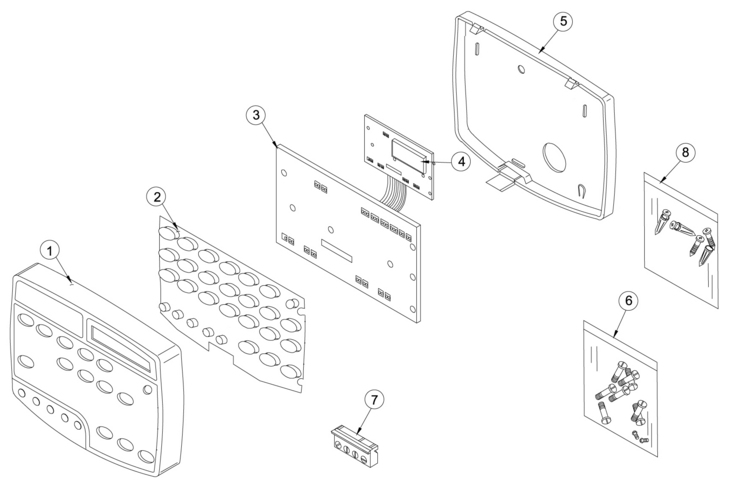

Here is the schematic view you requested:

Category: Electronic Controls
Manufacturer name: Jandy
Model Name: AquaLink RS Indoor Controller Series

Jandy AquaLink-RS-Indoor-Controller-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 6578 Controller Mounting Kit (incl. Aux. Decals, Battery, Mounting Screws) No N/A N/A N/A

-

 6781 Decals, Auxiliary Equipment Labels Yes 1 Day(s) $19.73

-

 7057 Service Controller, All Button w/10 ft. cable & connector No N/A N/A N/A

1

 7438 Controller Housing with decals, Front RS 2110 Dual Equipment No N/A N/A N/A

1

 7436 Controller Housing with decals, Front RS 12 Combo No N/A N/A N/A

1

 7434 Controller Housing with decals, Front RS 16 Combo No N/A N/A N/A

1

 6899 Controller Housing with decals, Front RS 2/6 Dual Equipment No N/A N/A N/A

1

 6898 Controller Housing with decals, Front RS 4 Only No N/A N/A N/A

1

 6897 Controller Housing with decals, Front RS 4 Combo No N/A N/A N/A

1

 6896 Controller Housing with decals, Front RS 6 Only No N/A N/A N/A

1

 6894 Controller Housing with decals, Front RS 8 Only No N/A N/A N/A

1

 6893 Controller Housing with decals, Front RS 8 Combo Yes 1 Day(s) N/A N/A

1

 6895 Controller Housing with decals, Front RS 6 Combo No N/A N/A N/A

2

 6546 Key Pad, AquaLink RS Controller No N/A N/A N/A

3

 6475LED4 P.C.B., AquaLink RS Controller Complete No N/A N/A N/A

4

 6803 L.C.D. Display - w/cable No N/A N/A N/A

5

 6544 Controller Housing, Back Yes 1 Day(s) $92.63

6

 6847 Screw Kit, PCB Mounting Yes 1 Day(s) $45.38

7

 6609 Terminal Bar, 4 Pin, Red Yes 1 Day(s) $45.36

8

 6912 Screw Kit, Controller Mount No N/A N/A N/A
