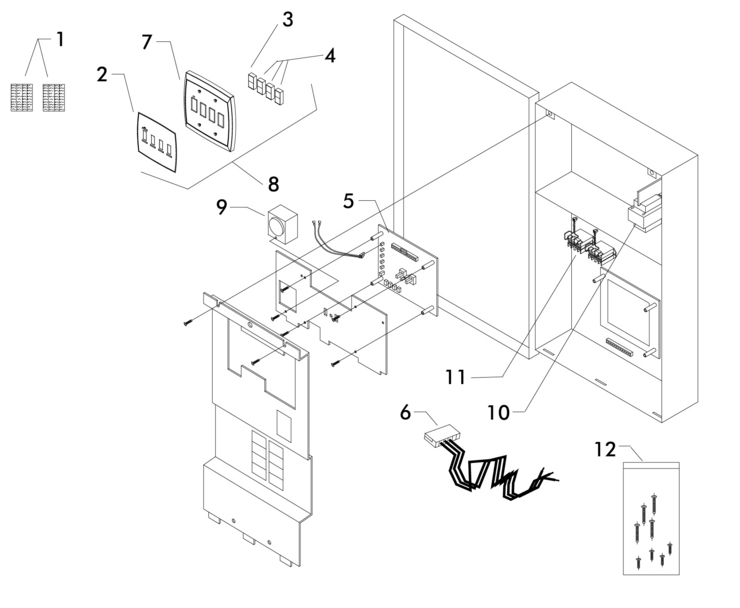

Here is the schematic view you requested:

Category: Electronic Controls

Manufacturer name: Jandy

Model Name: AquaSwitch Sub Panel Power Center w/Breaker Mount Plate



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	6781	Custom Decal Set (Includes Lights and General)	Yes	1 Day(s)	$19.73
2	7312	Decal AquaSwitch Faceplate	Yes	1 Day(s)	$39.11
3	7314	Switch, SPDT Rocker (Double) (a)	No	N/A	N/A	N/A
4	7313	Switch, SPST Rocker (Single) (a)	No	N/A	N/A	N/A
5	7200	PCB, AquaSwitch Power Center	Yes	1 Day(s)	$788.63
6	7522	Remote Wiring Harness for Laars Lite Heater	Yes	1 Day(s)	$40.88
8	7299	Controller, Complete	Yes	1 Day(s)	$108.76
9	7152	Time Clock Kit, 24 hr.	Yes	1 Day(s)	$138.42
10	6612	Transformer Kit, 120/24 VAC	Yes	1 Day(s)	$156.49
11	R0658100	3HP Relay with Harness	Yes	1 Day(s)	$82.67
12	6918	Screw Set, Bezel/Relay Mount	Yes	1 Day(s)	$19.73
