SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

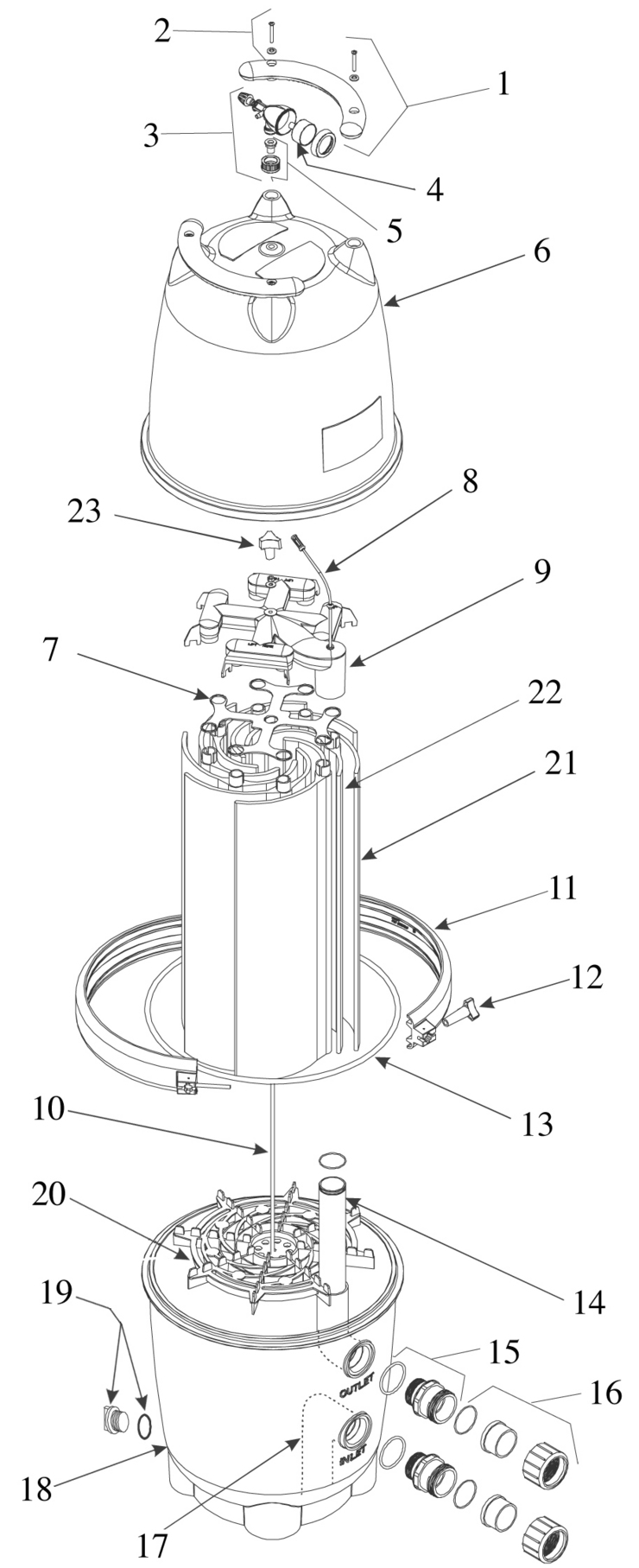

Here is the schematic view you requested:

Category: DE Filter Parts
Manufacturer name: Jandy
Model Name: DEL 60 Series Filters

Jandy DEL-60-Series-Filters replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

4

 R0359600 Pressure Gauge Yes 1 Day(s) $23.56

7

 R0359700 Top Spacer for DE Grids Yes 1 Day(s) $11.77

9

 R0359000 DE Manifold Assembly Yes 1 Day(s) $62.81

10

 R0359300 Tie Rod w/Knob & Lock Nuts Yes 1 Day(s) $35.33

20

 R0359500 DE Grid Support Yes 1 Day(s) $58.89

21

 R0359100 DE Grid, 60 sf Full Size Yes 1 Day(s) $66.75

22

 R0359200 DE Grid, 60 sf Short Span Yes 1 Day(s) $62.81

23

 R0359400 Tie rod Knob Yes 1 Day(s) $10.05
