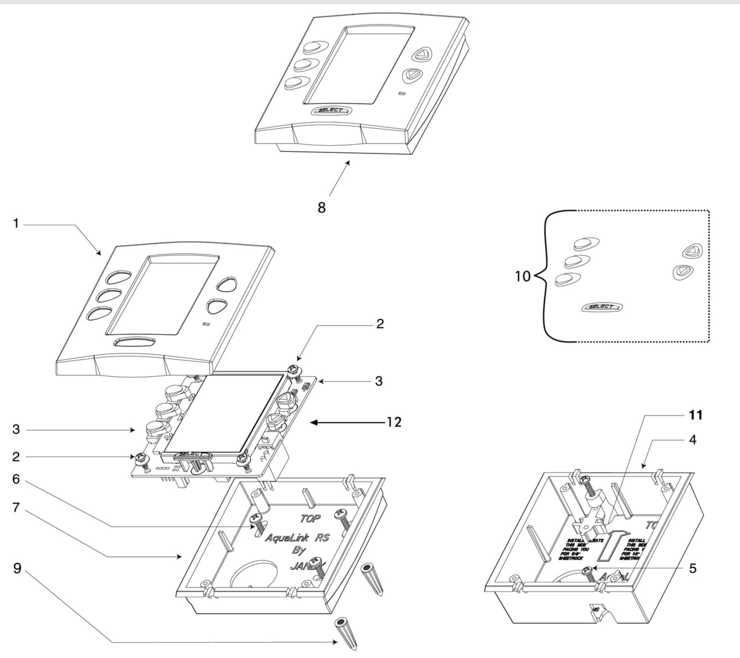

Here is the schematic view you requested:

Category: Electronic Controls

Manufacturer name: Jandy

Model Name: OneTouch Control Panel Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	R0551800	Service Controller, One Touch w/10 ft. Cable and Connector	Yes	1 Day(s)	$752.96
-	R0551300	Housing Screw Kit, OneTouch (Includes 2x Part #3279, 3x Part #1325,and 3x Part #4027)	Yes	1 Day(s)	$17.47
-	R0551200	PCB Screw Kit, OneTouch (Includes 4x Part #2224, and 4x Part #4862)	Yes	1 Day(s)	$10.91
1	R0550100	OneTouch, Faceplate Only, White	Yes	1 Day(s)	$26.19
1	7987	OneTouch, Faceplate Only, Polished Brass	Yes	1 Day(s)	$106.99
1	7988	OneTouch, Faceplate Only, Satin Brass	Yes	1 Day(s)	$106.99
1	7985	OneTouch, Faceplate Only, Polished Chrome	Yes	1 Day(s)	$93.44
1	R0550200	OneTouch, Faceplate Only, Black	Yes	1 Day(s)	$26.19
1	7986	OneTouch, Faceplate Only, Satin Chrome	Yes	1 Day(s)	$93.44
2	4862	Washer, Buna N, 3/8"" OD (a)	No	N/A	N/A	N/A
3	R0550700	PCB Subassembly with White Buttons and LCD	Yes	1 Day(s)	$1326.04
3	R0550800	PCB Subassembly with Black Buttons and LCD	Yes	1 Day(s)	$942.11
4	R0550900	Housing, Flush Mount, White	Yes	1 Day(s)	$45.34
7	R0551000	Housing, Surface Mount, White	Yes	1 Day(s)	$41.44
7	R0551100	Housing, Surface Mount, Black	Yes	1 Day(s)	$41.44
8	7953	OneTouch Control Panel, Complete, Surface and Flush Mount, White	Yes	1 Day(s)	$795.81
8	7954	OneTouch Control Panel, Complete, Surface and Flush Mount, Black	Yes	1 Day(s)	$795.81
10	R0551400	Replacement Buttons, OneTouch, White	Yes	1 Day(s)	$41.49
10	R0551500	Replacement Buttons, OneTouch, Black	Yes	1 Day(s)	$33.16
11	7694	Cleat, Flush Mount Sheet Rock Fastener (b)	No	N/A	N/A	N/A
12	8144	OneTouch Controller Chip	No	N/A	N/A	N/A
