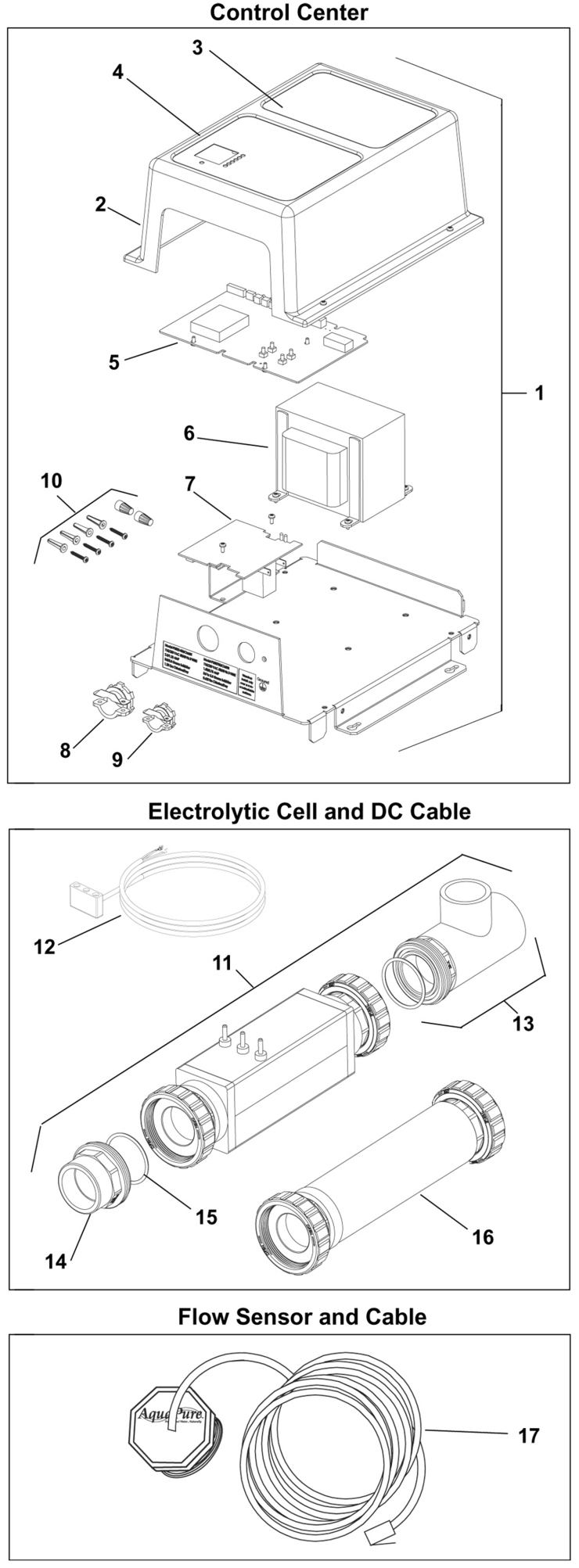

Here is the schematic view you requested:

Category: Electronic Controls
Manufacturer name: Jandy
Model Name: PURE700 & PURE1400 Series

Jandy PURE700-PURE1400-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 R0402900 PURE700 - Control Box Complete Yes 1 Day(s) $1373.99

1

 R0403000 PURE1400 - Control Box Complete Yes 1 Day(s) $1373.99

2

 R0403100 PURE700 - Control Box Cover Yes 1 Day(s) $122.11

2

 R0403200 PURE1400 - Control Box Cover Yes 1 Day(s) $122.11

3

 R0404300 Control Box Decal, Top Yes 1 Day(s) $30.78

4

 R0404400 Control Box Decal, Bottom Yes 1 Day(s) $30.56

5

 R0403900 PCB, Front LED, All Models Yes 1 Day(s) $357.24

6

 T1005 Transformer, 50/60Hz Yes 1 Day(s) $260.70

7

 R0404000 PCB, Back, PURE700 Yes 1 Day(s) $137.54

7

 R0404100 PCB, Back, PURE1400 Yes 1 Day(s) $137.54

8

 M1033 Strain Relief, Power Yes 1 Day(s) $1.13

9

 M1034 Strain Relief, Data Yes 1 Day(s) $0.72

10

 AZ008 Mounting Hardware Kit Yes 1 Day(s) $35.02

11

 R0403300 PURE700 - Cell w/ 8' DC Cable Yes 1 Day(s) $670.04

11

 R0403400 PURE700 - Cell w/ 16' DC Cable Yes 1 Day(s) $699.79

11

 R0403500 PURE1400 - Cell w/ 8' DC Cable Yes 1 Day(s) $893.36

11

 R0403600 PURE1400 - Cell w/ 16' DC Cable Yes 1 Day(s) $923.14

12

 R0402700 8' Cable, DC Yes 1 Day(s) $54.85

12

 R0402800 16' Cable, DC Yes 1 Day(s) $82.42

13

 AZ009 Tee w/O-ring, Sensor Yes 1 Day(s) $19.86

14

 P11019 Union Half, 1 1/2"" Threaded Socket Yes 1 Day(s) $12.16

15

 P11024 Union O-ring, 1 1/2"" Yes 1 Day(s) $2.95

17

 R0403700 Flow Sensor w/ 8' cable Yes 1 Day(s) $238.06

17

 R0403800 Flow Sensor w/ 16' cable Yes 1 Day(s) $277.79
