SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

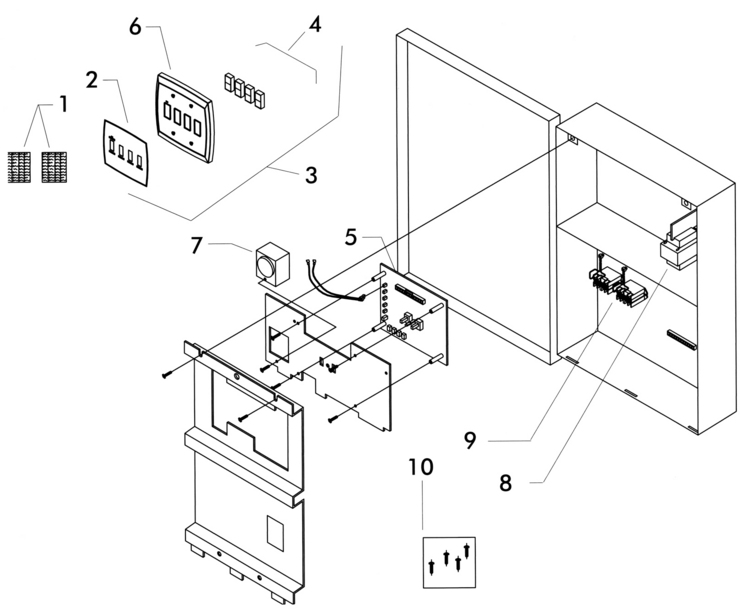

Here is the schematic view you requested:
Manufacturer name: Jandy
Model Name: Pool Control - Standard Power Center

Jandy Pool-Control-Standard-Power-Center replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 6781 Custom Decal Set (Includes Lights and General) Yes 1 Day(s) $19.73

2

 7501 Decal, Pool Control Faceplate Yes 1 Day(s) $39.11

3

 7502 Controller, Complete Pool Control Yes 1 Day(s) $107.27

4

 7314 Switch, SPST Rocker (4) (Double) (a) No N/A N/A N/A

5

 7200 PCB, Pool Control Power Center Yes 1 Day(s) $788.63

7

 7152 Time Clock Kit, 24 hr. Yes 1 Day(s) $138.42

8

 6612 Transformer Kit, 120/24 VAC Yes 1 Day(s) $156.49

9

 R0658100 3HP Relay with Harness Yes 1 Day(s) $82.67

10

 6918 Screw Set, Bezel/Relay Mount Yes 1 Day(s) $19.73
