SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

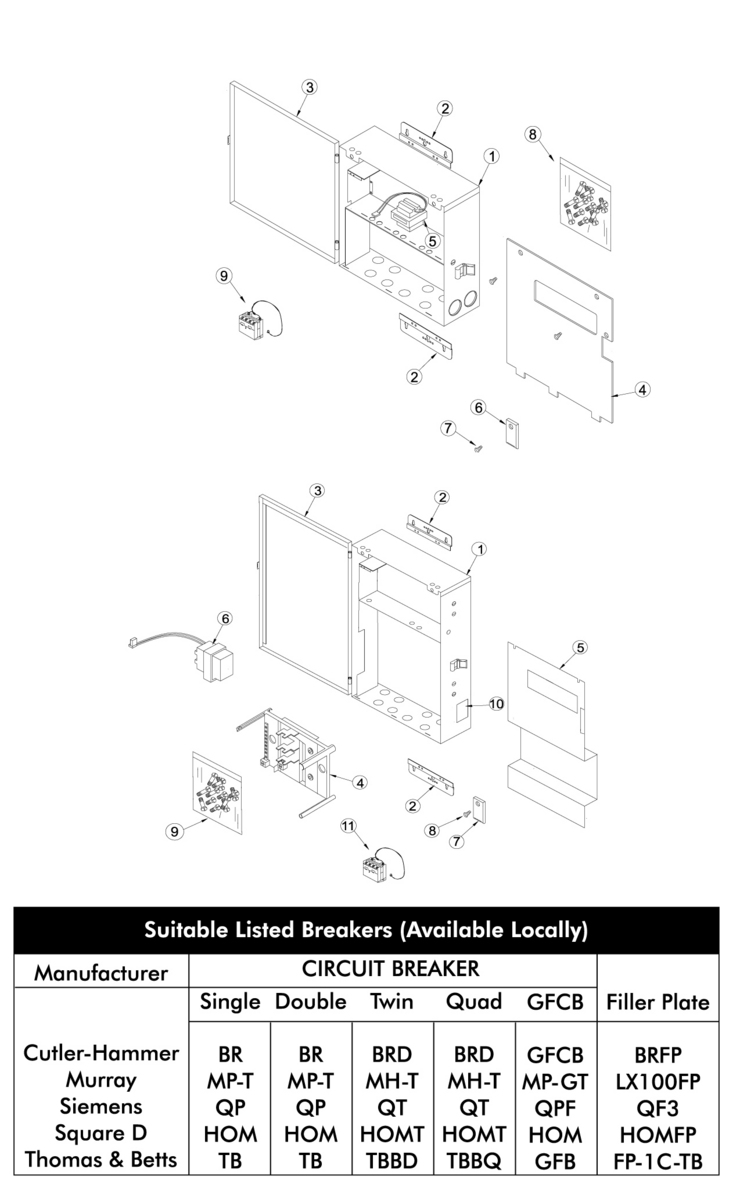

Here is the schematic view you requested:

Category: Electronic Controls
Manufacturer name: Jandy
Model Name: Power Center - Standard Enclosure

Jandy Power-Center-Standard-Enclosure replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 6613 Power Center, 24 VAC, Aqualink RS Yes 1 Day(s) $557.85

2

 6567 Mounting Brackets, RS Power Center Yes 1 Day(s) $6.96

3

 6563 Door, Standard Enclosure Yes 1 Day(s) $137.06

4

 6566 Faceplate, Standard Enclosure Yes 1 Day(s) $98.32

5

 6612 Transformer Kit, 120/24 VAC Yes 1 Day(s) $156.49

6

 6721 Battery Door No N/A N/A N/A

7

 6559 Screw, RS Battery Door Yes 1 Day(s) $1.13

8

 6918 Screw Set, Bezel/Relay Mount Yes 1 Day(s) $19.73

9

 R0658100 3HP Relay with Harness Yes 1 Day(s) $82.67
