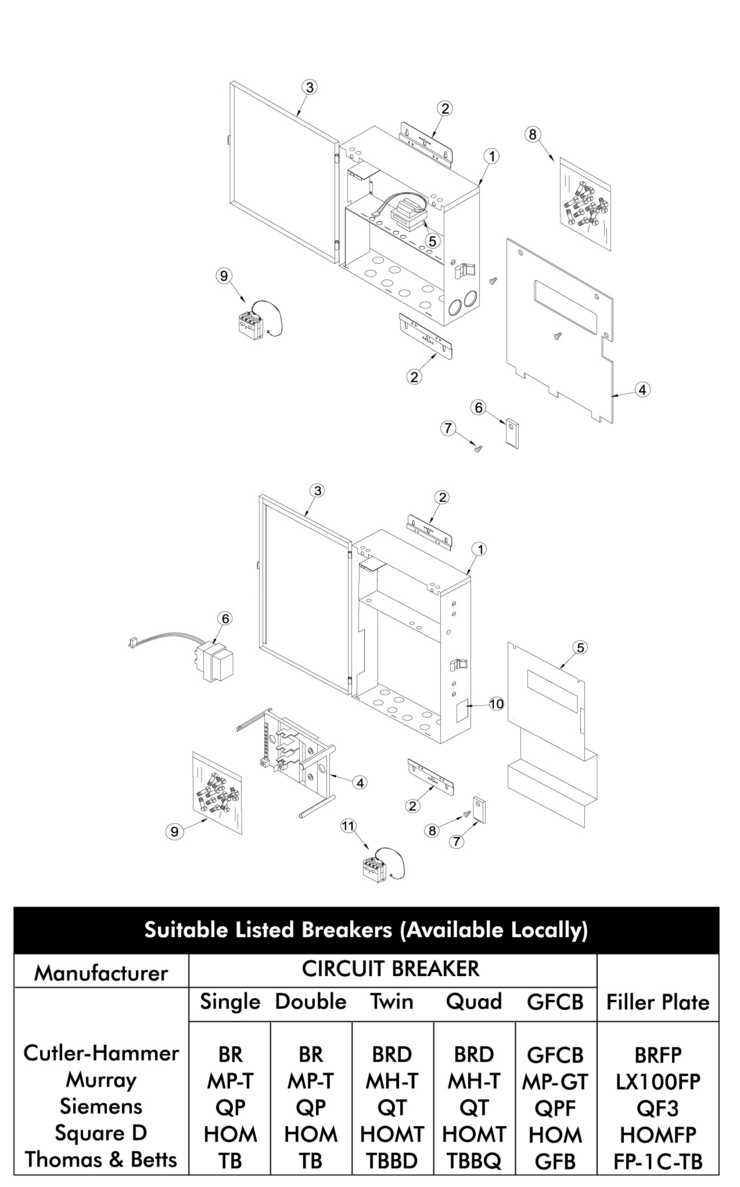

Here is the schematic view you requested:

Category: Electronic Controls

Manufacturer name: Jandy

Model Name: Power Center - Sub Panel Enclosure w/Breaker Mount Plate



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	6614	Power Center, Sub-panel, 24 VAC, AquaLink RS	Yes	1 Day(s)	$661.64
2	6567	Mounting Brackets, RS Power Center	Yes	1 Day(s)	$6.96
3	6614	Power Center, Sub-panel, 24 VAC, AquaLink RS	Yes	1 Day(s)	$661.64
4	6929	Breaker Mount Plate (Intermatic #124T2087A)	Yes	1 Day(s)	N/A	N/A
5	6932	Faceplate, Sub Panel	Yes	1 Day(s)	$98.32
6	6612	Transformer Kit, 120/24 VAC	Yes	1 Day(s)	$156.49
7	6721	Battery Door	No	N/A	N/A	N/A
8	6559	Screw, Battery Door	Yes	1 Day(s)	$1.13
9	6918	Screw Set, Bezel/Relay Mount	Yes	1 Day(s)	$19.73
10	6070	GFCI Outlet (Optional)	Yes	1 Day(s)	$141.07
11	R0658100	3HP Relay with Harness	Yes	1 Day(s)	$82.67
