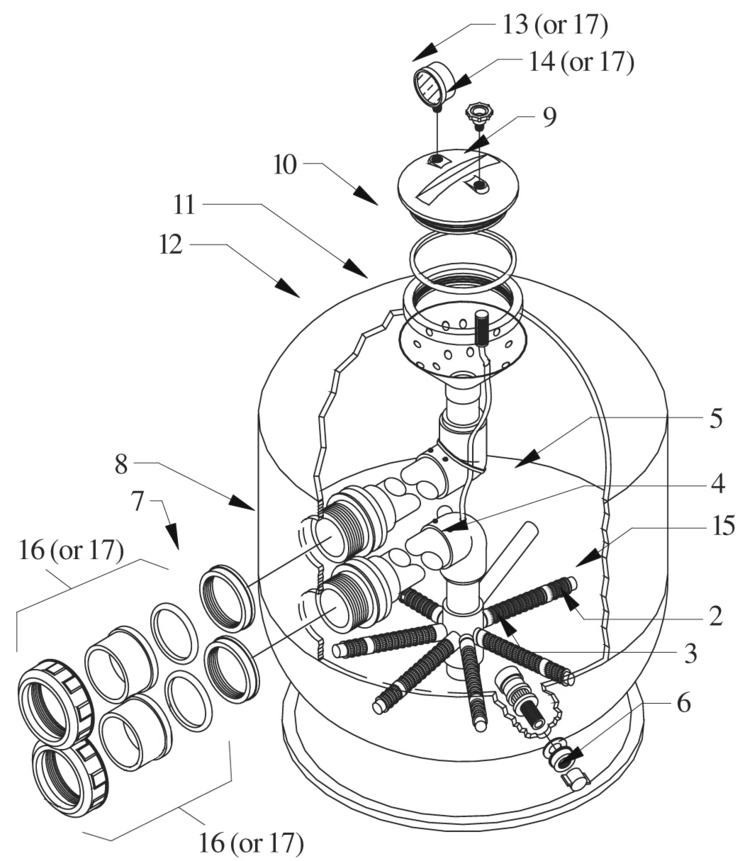

Here is the schematic view you requested:

Category: Sand Filter Parts

Manufacturer name: Jandy

Model Name: SF30-S & SF36-S Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
2	R0349400	75mm Lateral	Yes	1 Day(s)	N/A	N/A
3A	R0350800	200mm Lateral	No	N/A	N/A	N/A
3	R0349600	Lateral, 145mm	No	N/A	N/A	N/A
4	R0354102	Lateral Manifold Assembly	Yes	1 Day(s)	$157.00
4	R0354103	Lateral Manifold Assembly	No	N/A	N/A	N/A
5	R0354202	Inlet Tube Assembly	Yes	1 Day(s)	$132.60
5	R0354203	Inlet Tube Assembly	Yes	1 Day(s)	$120.67
6	R0355100	Drain Plug Assembly	Yes	1 Day(s)	$33.16
7	R0354300	Half Union, Bulkhead	Yes	1 Day(s)	$78.53
8	R0354400	Gasket, Half Union	Yes	1 Day(s)	$12.21
9	R0354500	Top Cap	No	N/A	N/A	N/A
10	R0354600	O-ring, Top Cap	No	N/A	N/A	N/A
11	R0352500	Breather Tube Assembly	No	N/A	N/A	N/A
12	R0354700	Funnel	Yes	1 Day(s)	$33.16
13	R0349300	Pressure Gauge w/O-ring	Yes	1 Day(s)	$20.93
14	R0349200	Air Relief Valve w/O-ring	No	N/A	N/A	N/A
15	R0349700	Lateral End Cap	Yes	1 Day(s)	$7.86
16	R0339500	Half Union	Yes	1 Day(s)	$42.97
17	R0355600	Accessory Bag w/Half Unions (2), Pressure Gauge, Air Relief Valve, Instructions	Yes	1 Day(s)	$157.00
