SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

Here is the schematic view you requested:

Category: Sand Filter Parts
Manufacturer name: Jandy
Model Name: ST-T (Thermoplastic, Top Mount) Series

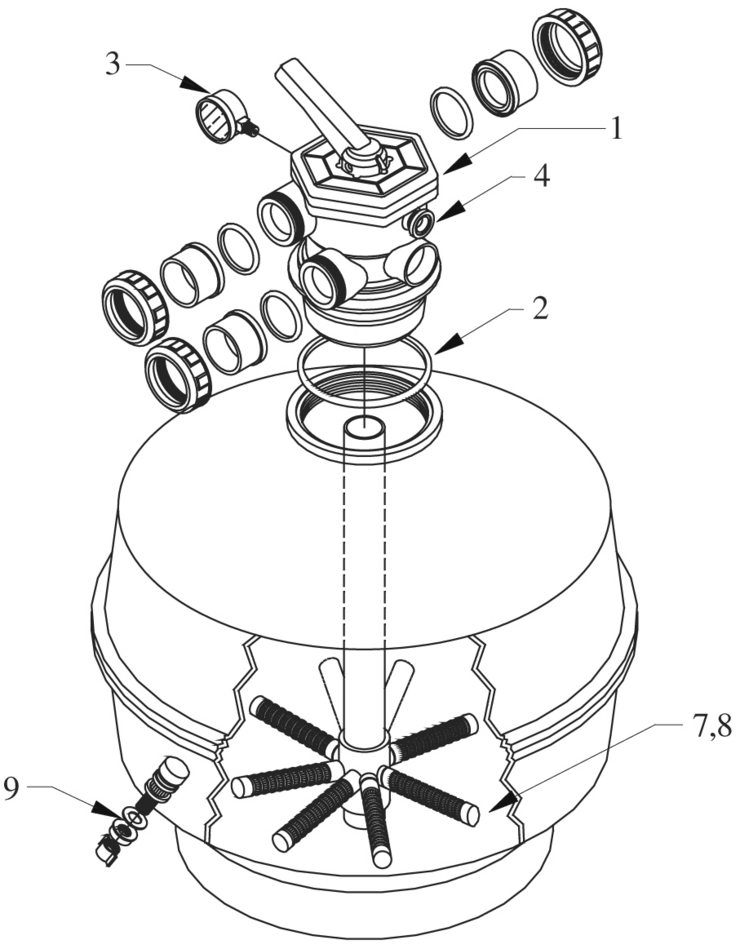

Jandy STT-Thermoplastic-Top-Mount-Series replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 R0349500 110mm Lateral Yes 1 Day(s) $10.91

1

 A0102200 Multiport Valve, 1 1/2"", Threaded Yes 1 Day(s) N/A N/A

2

 R0354800 Multiport Valve O-ring Yes 1 Day(s) $21.81

3

 R0349300 Pressure Gauge w/O-ring Yes 1 Day(s) $20.93

4

 R0349200 Pressure Relief Valve w/ O-ring No N/A N/A N/A

6

 R0354903 Collector Tube/Lateral Manifold Assembly, 1 1/2"" Yes 1 Day(s) $66.32

7

 R0349400 75mm Lateral Yes 1 Day(s) N/A N/A

8

 R0349700 Lateral End Cap Yes 1 Day(s) $7.86

9

 R0355100 Drain Plug Assembly Yes 1 Day(s) $33.16
