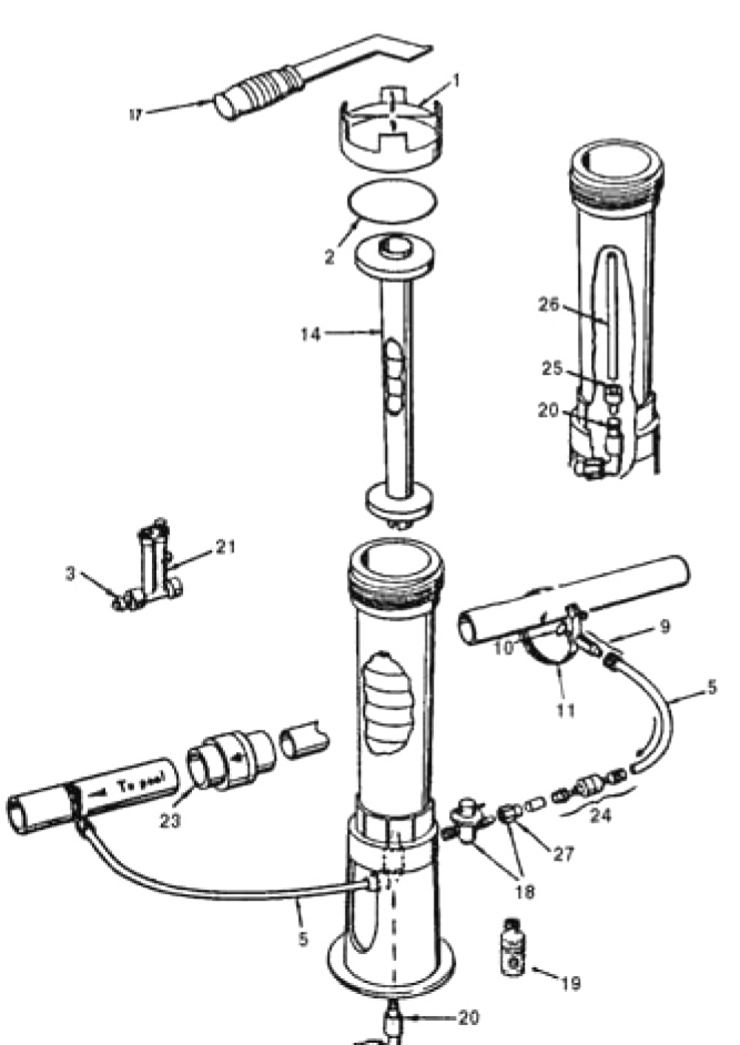

Here is the schematic view you requested:

Category: Chemical Feeders

Manufacturer name: Pentair

Model Name: Automatic Feeder - Models 300, 302, 300-19, 300-29



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
5	R172023	3/8 in. o.d. x 1/4 in. i.d. tubing, 8 ft.	Yes	1 Day(s)	$5.87
9	R172032	Tube fitting with compression nut	Yes	1 Day(s)	$4.01
10	R172033	Gasket	Yes	1 Day(s)	$1.16
11	R172034	Saddle clamp	Yes	1 Day(s)	$4.14
14	R172037	Spa chamber #302 only	Yes	1 Day(s)	$14.36
14	R172037	Spa chamber #302 only	Yes	1 Day(s)	$14.36
18	R172060	Control valve 1/4 in. NPT x tube with compression nut	Yes	1 Day(s)	$16.49
20	R172061	Combination check valve / elbow	Yes	1 Day(s)	$4.21
21	R172080	Flow indicator w/check valve	Yes	1 Day(s)	$26.61
24	R172323	1/4 in. Corrosion resistant check valve	Yes	1 Day(s)	$16.61
25	R172061B	Standpipe adapter, Bromine	Yes	1 Day(s)	$3.51
26	R18761	6 in. Standpipe 3/8 in. o.d. x 1/4 in. i.d.	Yes	1 Day(s)	$0.59
27	R18706	Compression nut only	Yes	1 Day(s)	$0.96
