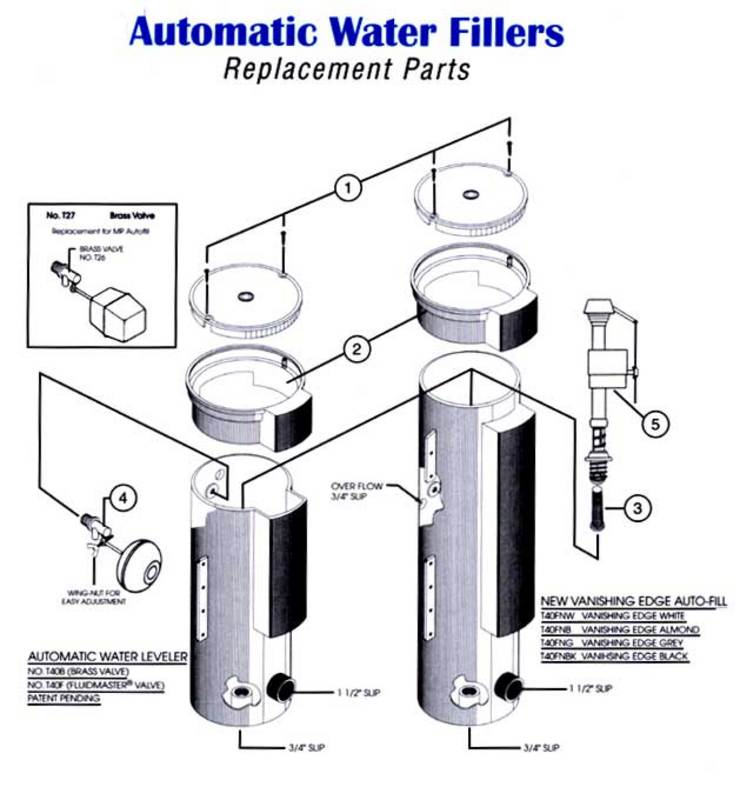

Here is the schematic view you requested:

Category: Maintenance Equipment

Manufacturer name: Pentair

Model Name: Automatic Water Fillers



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	T10W	AutoFill Lid, with Screws, White	No	N/A	N/A	N/A
1	T10B	AutoFill Lid, with Screws, Almond	Yes	1 Day(s)	$11.22
1	T10G	AutoFill Lid, with Screws, Grey	Yes	1 Day(s)	$11.22
1	T10BK	AutoFill Lid, with Screws, Black	Yes	1 Day(s)	$11.22
2	T16BK	AutoFill Top Ring Black	Yes	1 Day(s)	$12.33
2	T16G	AutoFill Top Ring Grey	Yes	1 Day(s)	$12.33
2	T16B	AutoFill Top Ring Almond	Yes	1 Day(s)	$12.33
2	T16W	AutoFill Top Ring White	No	N/A	N/A	N/A
3	T24	Debris Screen w/ Washer	Yes	1 Day(s)	$5.28
4	T26	Brass Valve	Yes	1 Day(s)	$37.96
5	T29	Fluidmaster Valve	Yes	1 Day(s)	$20.47
