SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

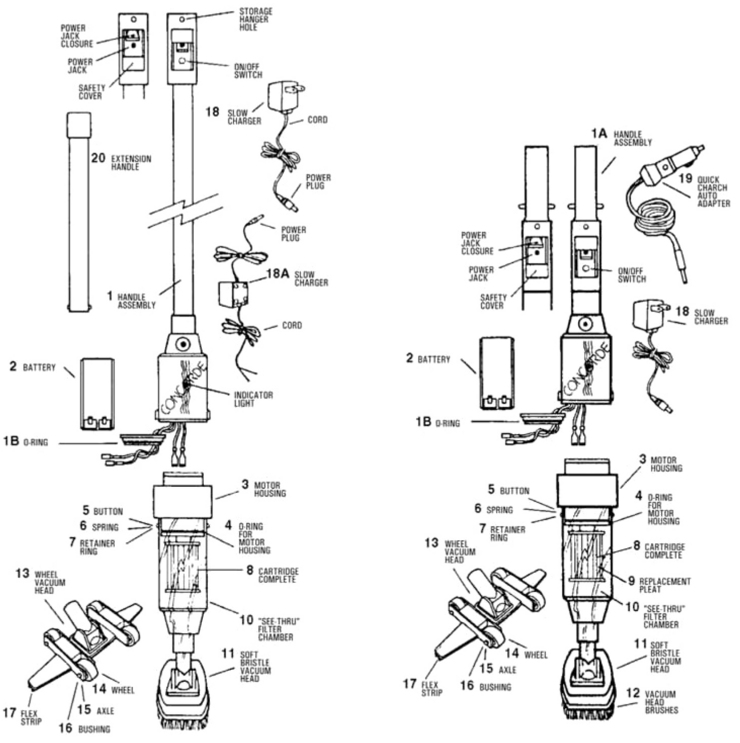

Here is the schematic view you requested:

Category: Maintenance Equipment
Manufacturer name: Pentair
Model Name: Concorde

Pentair Concorde replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 R37115 Handle assembly w/LED light - residential model No N/A N/A N/A

1A

 R37116 Handle assembly w/LED light- service model No N/A N/A N/A

1B

 R37121 O-ring for plate No N/A N/A N/A

2

 R37086 Rechargeable battery Yes 1 Day(s) N/A N/A

3

 R37071 Motor housing complete No N/A N/A N/A

4

 R37009 O-ring for motor housing No N/A N/A N/A

5

 R37042 Button-quick release No N/A N/A N/A

6

 R37023 Spring-quick release No N/A N/A N/A

7

 R37036 Retainer ring No N/A N/A N/A

8

 R37054 Cartridge complete No N/A N/A N/A

10

 R37056 ""See-thru"" filter chamber No N/A N/A N/A

10A

 R37064 Flapper/check valve assembly No N/A N/A N/A

11

 R37052 Soft Bristle vacuum head No N/A N/A N/A

13

 R37090 Wheel vacuum head (opt.) No N/A N/A N/A

14

 R03021 #174 Solid plastic wheel Yes 1 Day(s) $1.96

15

 R18527 Delrin axle No N/A N/A N/A

16

 R03024 Wheel bushing, (2 per wheel required) Yes 1 Day(s) $0.90

17

 R37092 Flex strip (20 in. per bubble pack) No N/A N/A N/A

18

 R37003 Slow charger 120 Volt, 60 Cycle No N/A N/A N/A

18A

 R37069 Slow charger 240 Volt, 50/60 Cycle, (plug not included) No N/A N/A N/A

19

 R37076 Quick charge auto adapter No N/A N/A N/A

20

 R37057 Extension handle No N/A N/A N/A
