SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

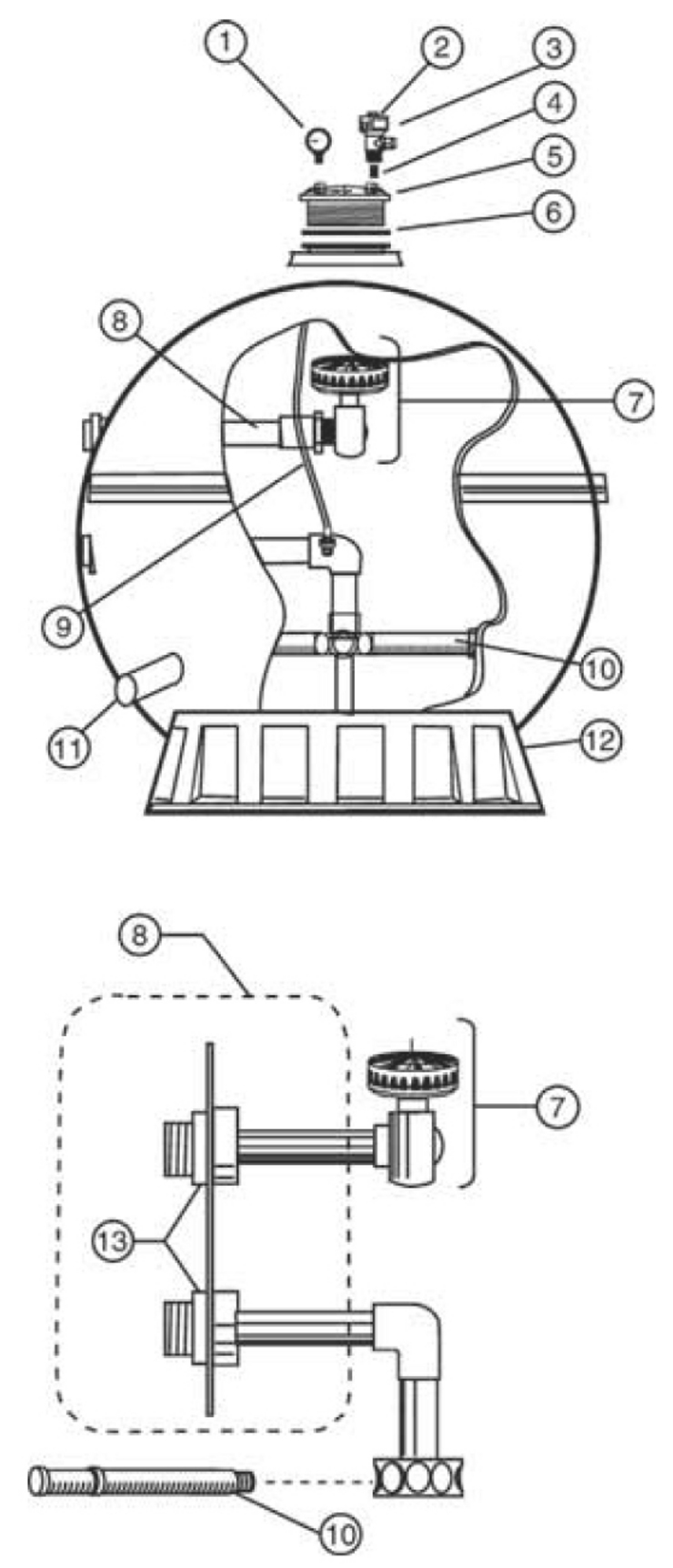

Here is the schematic view you requested:

Category: Sand Filter Parts
Manufacturer name: Pentair
Model Name: Eclipse Side Mount

Pentair Eclipse-Side-Mount replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

2

 98218900 Plug for High Flow manual air relief valve (HRMARV) Yes 1 Day(s) $3.68

4

 57006800 O-ring Yes 1 Day(s) $1.87

5

 55022000 Lid Yes 1 Day(s) $55.77

6

 52000500 O-ring Yes 1 Day(s) $14.87

7

 150019 Diffuser assy., overdrain, 36 in. filter (e) Yes 1 Day(s) $60.04

7

 150018 Diffuser assy., overdrain, 30 in. filter (e) Yes 1 Day(s) $60.04

7

 55008900 Basket assy., overdrain, 30 in. filter (d) No N/A N/A N/A

7

 150017 Diffuser assy., overdrain, 26 in. filter (e) Yes 1 Day(s) $29.68

7

 55008300 Basket assy., overdrain, 26 in. filter (d) Yes 1 Day(s) $113.04

8

 150022 Internal drain pipe assy., 36 in. filter (e) Yes 1 Day(s) $101.03

8

 55120200 Internal drain pipe assy., 36 in. filter (d) Yes 1 Day(s) $202.68

8

 150021 Internal drain pipe assy., 30 in. filter (e) Yes 1 Day(s) $116.58

8

 55120100 Internal drain pipe assy., 30 in. filter (d) Yes 1 Day(s) $167.19

8

 150020 Internal drain pipe assy., 26 in. filter (e) Yes 1 Day(s) $87.74

8

 55120000 Internal drain pipe assy., 26 in. filter (d) Yes 1 Day(s) $202.68

9

 150044 Kit, service air tube, 26,30 & 36 in. filter (g) Yes 1 Day(s) $18.26

9

 150023 Kit, service air tube, 26,30 & 36 in. filter (e)(f) Yes 1 Day(s) $18.26

9

 55020800 Kit, service air tube, 26,30 & 36 in. filter (f) Yes 1 Day(s) $16.34

9

 51999100 Kit, service air tube, 3/8 in. o.d. (a) Yes 1 Day(s) $9.18

10

 55025800 Lateral, underdrain, 26 in. filter, (3-7/8 in.) 8 per filter (c) Yes 1 Day(s) $13.56

10

 55025900 Lateral, underdrain, 30 in. filter, (7-7/8 in.) 8 per filter (c) Yes 1 Day(s) $15.27

10

 55026300 Lateral, underdrain, 36 in. filter, (10 in.) 8 per filter (c) Yes 1 Day(s) $15.75

11

 86300400 Cap, drain Yes 1 Day(s) $5.44

11

 86300300 Fitting, drain sand / water Yes 1 Day(s) $9.83

11

 55007800 Drain assy., complete Yes 1 Day(s) $19.89

12

 55226100 Base, 22 & 26 in. filter Yes 1 Day(s) $143.31

12

 55235000 Base, 30 & 36 in. filter Yes 1 Day(s) $402.44

13

 53007111 Fitting, bulkhead, outer Yes 1 Day(s) $17.72

13

 51021500 Gasket, bulkhead Yes 1 Day(s) $9.83

13

 52000100 O-ring, bulkhead (1) req. Yes 1 Day(s) $9.83

13

 52000200 O-ring, bulkhead (2) req. Yes 1 Day(s) $8.67
