SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

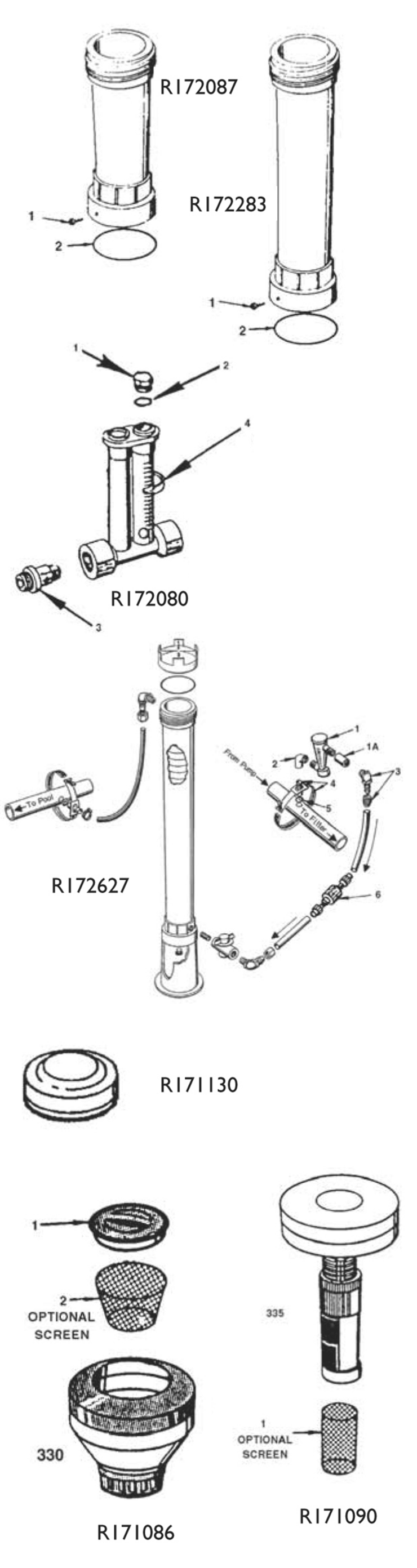

Here is the schematic view you requested:

Category: Chemical Feeders
Manufacturer name: Pentair
Model Name: Extensions, Dispensers, Flow Indicators

Pentair Extensions-Dispensers-Flow-Indicators replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 R18902 Cap Yes 1 Day(s) $1.16

1A

 R172313 1/2 in. Coupling (included with flow indicator) Yes 1 Day(s) $3.72

1

 R18819 Lock ring Yes 1 Day(s) $3.54

1

 R18855 Screen Yes 1 Day(s) $1.73

1

 R18729B Lid only (new style—fits 'B' body) Yes 1 Day(s) $3.51

1

 R172276 Commercial flow indicator Yes 1 Day(s) $39.51

1

 R172078 Lockscrew (bottom collar) Yes 1 Day(s) $1.44

2

 R270422 1/2 in. x 90° Elbow FPT Yes 1 Day(s) $3.51

2

 R18856 Screen Yes 1 Day(s) $4.65

3

 R172272 1/2 in. x 90° NPT x tube fitting with nut Yes 1 Day(s) $5.54

3

 R172272 1/2 in. x 90° NPT x tube fitting with nut Yes 1 Day(s) $5.54

3

 R172272 1/2 in. x 90° NPT x tube fitting with nut Yes 1 Day(s) $5.54

3

 R172020 Check valve Yes 1 Day(s) $4.99

3

 R172020 Check valve Yes 1 Day(s) $4.99

3

 R172272 1/2 in. x 90° NPT x tube fitting with nut Yes 1 Day(s) $5.54

3

 R172272 1/2 in. x 90° NPT x tube fitting with nut Yes 1 Day(s) $5.54

4

 R172235 Marker clip Yes 1 Day(s) $3.51

4

 R172628 Saddle clamp with inlet fitting (threaded) Yes 1 Day(s) $15.21

5

 R172263 Saddle gasket Yes 1 Day(s) $1.11

5

 R172263 Saddle gasket Yes 1 Day(s) $1.11

6

 R172324 1/2 in. Corrosion resistant check valve. Tube x tube Yes 1 Day(s) $13.62
