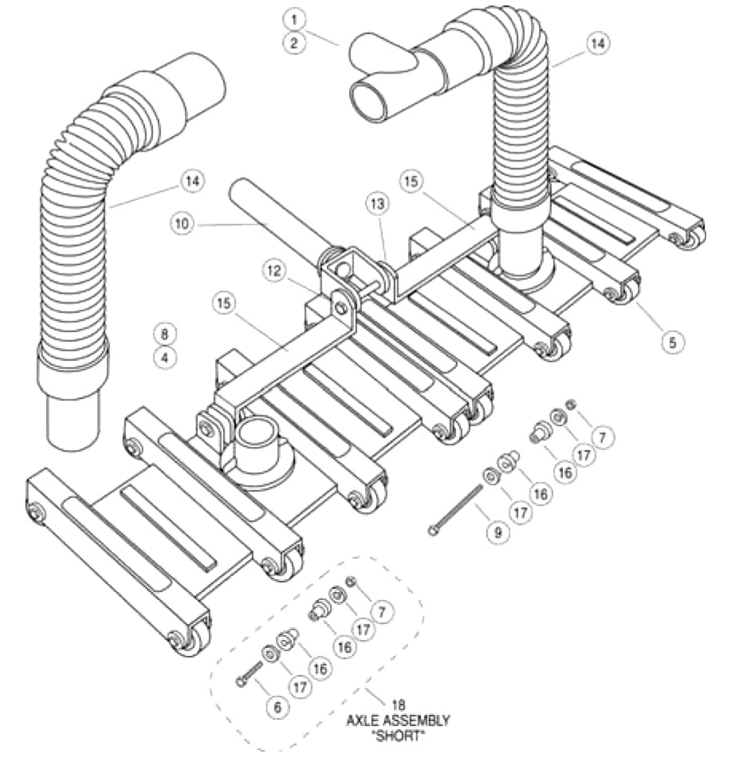

Here is the schematic view you requested:

Category: Maintenance Equipment

Manufacturer name: Pentair

Model Name: Flex-A-Vac



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	R03235	Tee connector 1 1/2 in.	No	N/A	N/A	N/A
2	R03242	Tee connector 2 in.	No	N/A	N/A	N/A
4	R01078	Washer, flat 1/4-20-s/s	No	N/A	N/A	N/A
5	R03021	Wheel	Yes	1 Day(s)	$1.96
6	R01013	Bolt, axle-short	No	N/A	N/A	N/A
7	R01014	Nut, axle	No	N/A	N/A	N/A
8	R01076	Nut, hex 1/4-20-s/s w/insert	No	N/A	N/A	N/A
9	R01089	Bolt, axle-long	No	N/A	N/A	N/A
10	R201408	Handle, chrome, steerable	Yes	1 Day(s)	$25.02
12	R01015	Nut for handle bolt, 1/4-20	Yes	1 Day(s)	$0.95
13	R01038	Bolt for handle, 1/4-20 x 2 in.	Yes	1 Day(s)	$3.72
14	R03230	Hose, each	No	N/A	N/A	N/A
16	R03024	Bushing, wheel, inner	Yes	1 Day(s)	$0.90
17	R03025	Bushing, wheel, outer	No	N/A	N/A	N/A
18	R201456	Axle assembly short (Does not include wheel)	Yes	1 Day(s)	$1.76
