SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

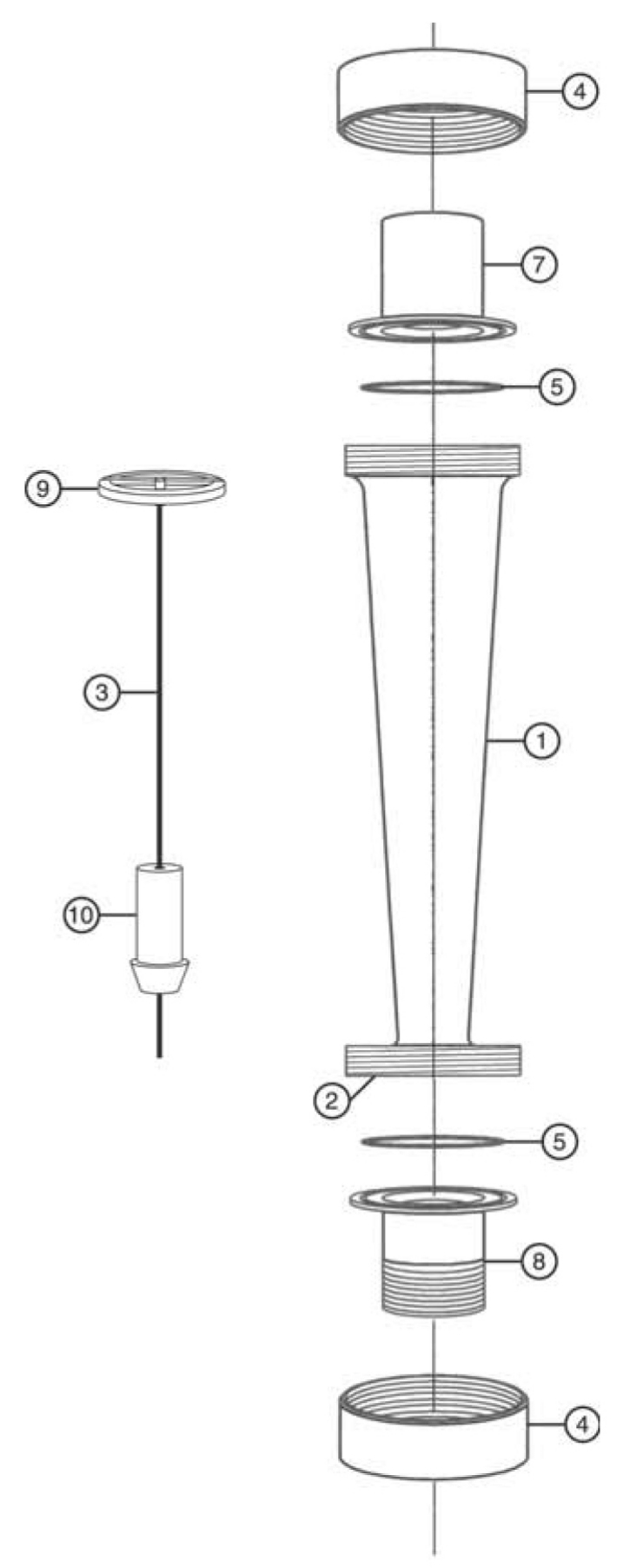

Here is the schematic view you requested:

Category: Maintenance Equipment
Manufacturer name: Pentair
Model Name: Flowmeters - made for Liquid Applications

Pentair Flowmeters-made-for-Liquid-Applications replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 FS1 Flowmeter Body (1-10 GPM) No N/A N/A N/A

1

 FS2 Flowmeter Body (2-16 GPM) Yes 1 Day(s) N/A N/A

1

 FS3 Flowmeter Body (.5-5 GPM) No N/A N/A N/A

1

 FFL2 Flowmeter Body (2-40 GPM) No N/A N/A N/A

2

 FSBG Bottom Guide Support - Small No N/A N/A N/A

3

 FSGW Guide Wire - Small No N/A N/A N/A

3

 FLGW Guide Wire - Large Yes 1 Day(s) N/A N/A

4

 FLKN Knurled Nut - Large Yes 1 Day(s) $17.45

4

 FSKN Knurled Nut - Small Yes 1 Day(s) $29.11

5

 FSO O-Ring - Small Yes 1 Day(s) $1.86

5

 FLO O-Ring - Large Yes 1 Day(s) $1.73

7

 FSSE 3/4, in. Sweat End - Small Yes 1 Day(s) $26.85

7

 FLSE 1 in. Sweat End - Large No N/A N/A N/A

8

 FLTE2 Threaded End 1 1/2 in. - Large Yes 1 Day(s) $47.45

8

 FLTE1 Threaded End 1 in. - Large Yes 1 Day(s) $47.45

8

 FSTE Threaded End 1 in. - Small Yes 1 Day(s) $29.29

8

 FSNE Nylon End - Small Yes 1 Day(s) $7.89

9

 FSTG Top Guide Support - Small No N/A N/A N/A

9

 FLTG Top Guide Support - Large Yes 1 Day(s) N/A N/A

10

 F4 Float (.5-5 GPM) No N/A N/A N/A

10

 F2 Float (1-10 GPM) No N/A N/A N/A

10

 FB Nylon Cleaning Brush No N/A N/A N/A
