SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

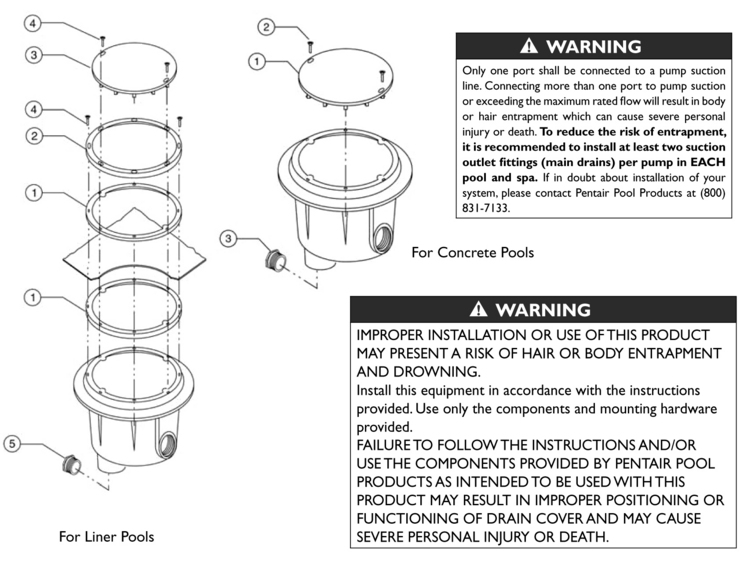

Here is the schematic view you requested:

Category: Main Drains and Grates
Manufacturer name: Pentair
Model Name: For Liner Pools

Pentair For-Liner-Pools replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 87102000 Sealing gasket, each Yes 1 Day(s) $3.23

2

 87101900 Vinyl / fiberglass sealing ring, white Yes 1 Day(s) $6.73

3

 87103400 Anti-vortex plate w/screws, white No N/A N/A N/A

4

 98202900 Screw, seal 13-16 x 1 in. high-low, grate Yes 1 Day(s) $1.08

4

 98207200 Screw, seal 13-16 x 1 1/4 in., anti-vortex Yes 1 Day(s) $1.26

5

 51001900 Plug, 1 1/2 in. Yes 1 Day(s) $3.68
