SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

Here is the schematic view you requested:

Category: Chemical Feeders
Manufacturer name: Pentair
Model Name: High Capacity Auto Feeders - Models HC-3315, HC-3330, HC-3340

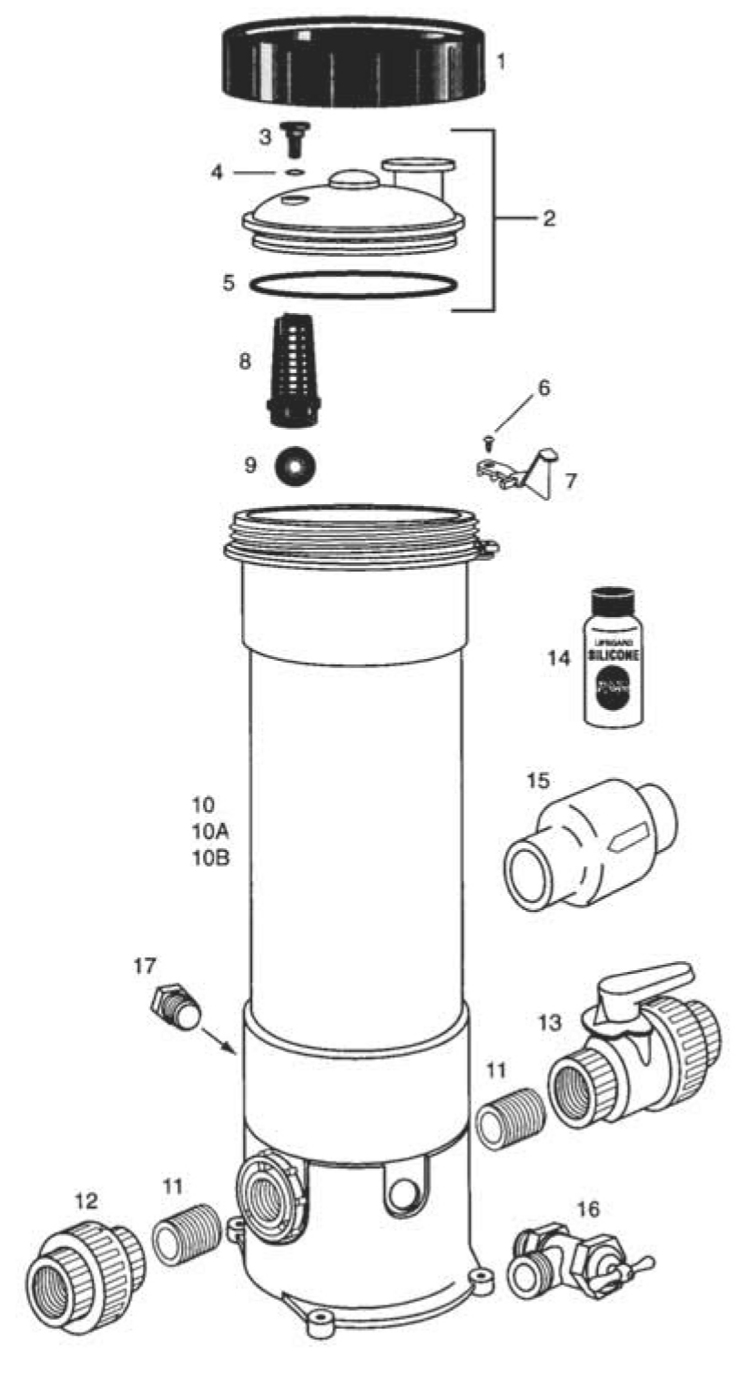

Pentair High-Capacity-Auto-Feeders-Models-HC3315 replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

2

 R172385D Lid assembly complete Yes 1 Day(s) $19.06

5

 R172240 O-ring lid to housing Yes 1 Day(s) $10.90

8

 R175251 Screen Yes 1 Day(s) $3.45

9

 R172435 Check ball Yes 1 Day(s) $0.90

11

 R270484 1 in. Close nipple Yes 1 Day(s) $3.51

12

 R270531 1 in. Threaded union Yes 1 Day(s) $10.52

13

 R172439 Control valve Yes 1 Day(s) $51.08

15

 R172288 1 1/2 in.-2 in. Check valve Yes 1 Day(s) $31.25

15

 R172288 1 1/2 in.-2 in. Check valve Yes 1 Day(s) $31.25

15

 R172288 1 1/2 in.-2 in. Check valve Yes 1 Day(s) $31.25

15

 R172288 1 1/2 in.-2 in. Check valve Yes 1 Day(s) $31.25

16

 R175009 1/2 in. Drain valve Yes 1 Day(s) $10.52

17

 R172134 1/2 in. threaded plug Yes 1 Day(s) $6.60

17

 R172134 1/2 in. threaded plug Yes 1 Day(s) $6.60

17

 R172134 1/2 in. threaded plug Yes 1 Day(s) $6.60

17

 R172082 Flow rate indicator Yes 1 Day(s) $115.14
