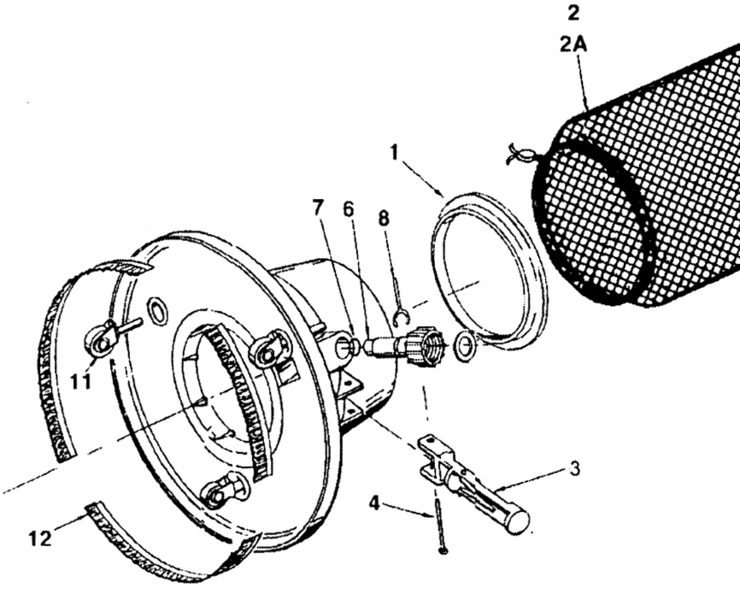

Here is the schematic view you requested:

Category: Maintenance Equipment

Manufacturer name: Pentair

Model Name: Leaf Eater Models 185



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	R18502	Body Collar	Yes	1 Day(s)	$8.77
2B	R211430	High capacity bag - 5 ft.	Yes	1 Day(s)	$18.30
2A	R211286	Optional sand/silt bag	Yes	1 Day(s)	$19.35
2C	R211432	High capacity bag - 3 ft.	Yes	1 Day(s)	$11.42
3	R201476	Handle with delrin spring clip #192	Yes	1 Day(s)	$3.63
4	R03101	Handle connecting pin	Yes	1 Day(s)	$0.63
6	R18507	Hose inlet filter	Yes	1 Day(s)	$5.06
7	R18508	O-Ring for inlet fitting	Yes	1 Day(s)	$1.64
8	R18509	Retainer clip	Yes	1 Day(s)	$1.56
9	R18510	Automatic cleaner adapter	Yes	1 Day(s)	$6.37
10	R18511	O-Ring for automatic cleaner adapter	Yes	1 Day(s)	$1.62
11	R211436	Wheel assembly including caster	Yes	1 Day(s)	$8.80
12	R211406	Brush set - use on 185 VL only	Yes	1 Day(s)	$10.98
