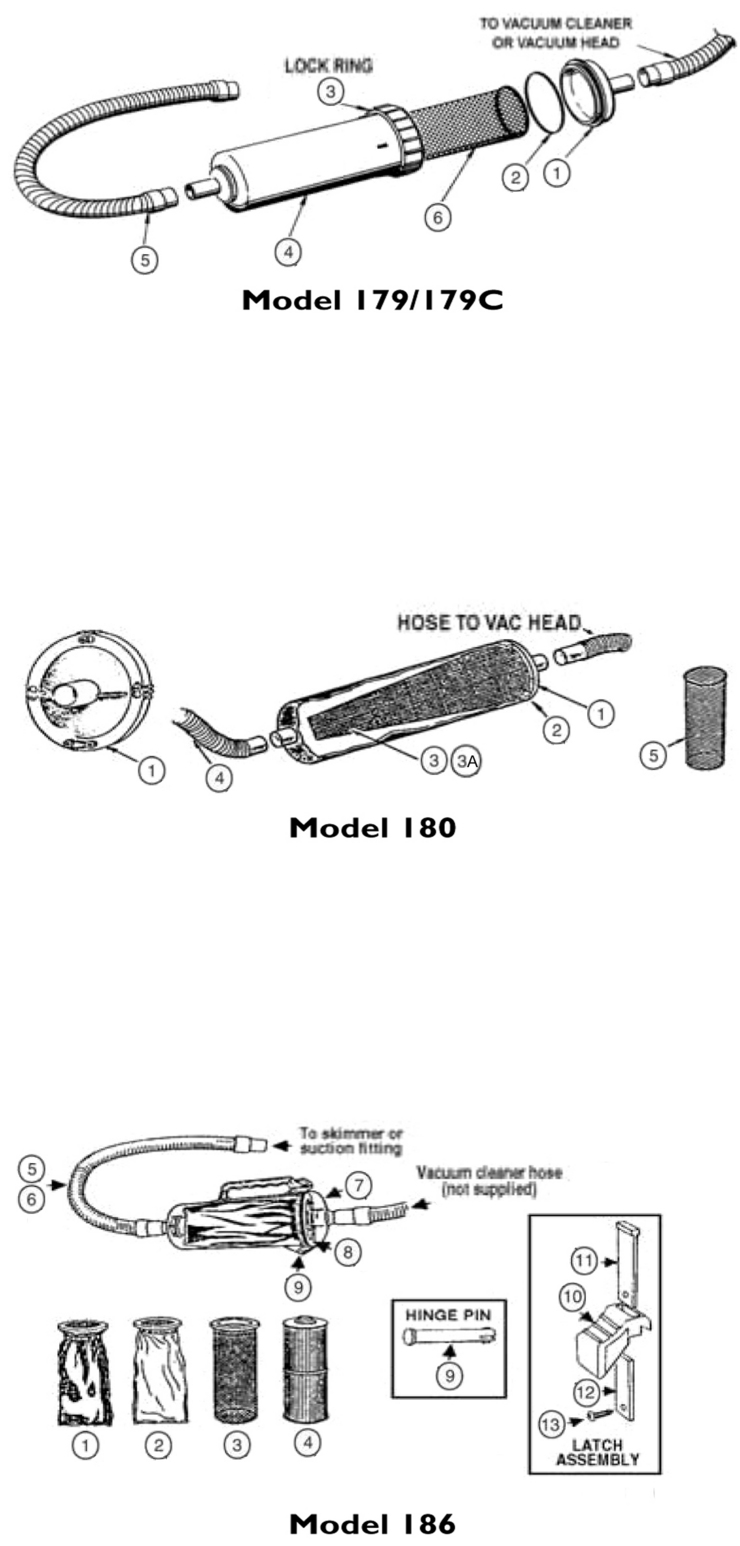

Here is the schematic view you requested:

Category: Maintenance Equipment

Manufacturer name: Pentair

Model Name: Models 186-A, B, C & D



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	R211516	Std. Mesh Bag #179	Yes	1 Day(s)	$13.34
2	R211536	Canvas Bag #179, #186	Yes	1 Day(s)	$30.72
2A	R211518	Sand/Silt Bag	Yes	1 Day(s)	$26.84
3	R211526	Vinyl Coated Metal Basket	Yes	1 Day(s)	$54.31
4	R172653	25 sq. ft. Cartridge w/Plug	Yes	1 Day(s)	$36.34
4B	R18658	Gasket for Cartridge	No	N/A	N/A	N/A
4A	R172654	50 sq.ft. Cartridge w/Plug	Yes	1 Day(s)	$45.30
5	R211256	3 ft. of 1 1/2 in. Vacuum Hose	Yes	1 Day(s)	$20.27
6	R211260	3 ft. of 2 in. Vacuum Hose	Yes	1 Day(s)	$27.47
7A	R18651	Lid only 2 in.	Yes	1 Day(s)	$25.78
7	R18650	Lid only 1 1/2 in.	Yes	1 Day(s)	$23.69
9	R18654	Hinge Pin	Yes	1 Day(s)	$1.41
10	R18648	Latch Handle	Yes	1 Day(s)	$5.27
11	R18655	Spring Latch	Yes	1 Day(s)	$1.39
12	R18656	Retainer Spring Latch	Yes	1 Day(s)	$1.41
13	R01045	Screw #6 x 1/2 in.	Yes	1 Day(s)	$1.51
13	R211600	Latch & O-Ring Kit (includes #8 through #13)	Yes	1 Day(s)	$9.22
14	R18680	2 in. Canister & Handle Only	Yes	1 Day(s)	$65.88
14A	R18682	1 1/2 in. Canister & Handle Only	Yes	1 Day(s)	$65.88
