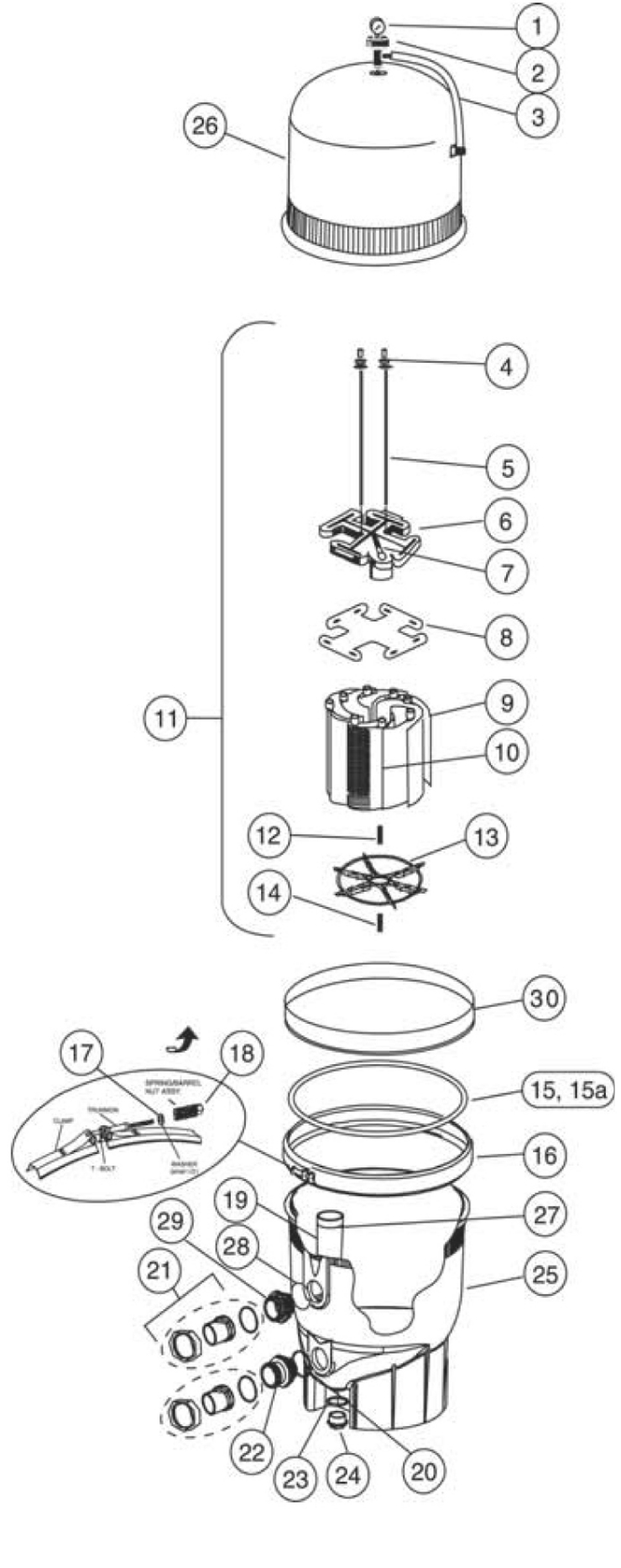

Here is the schematic view you requested:

Category: DE Filter Parts

Manufacturer name: Pentair

Model Name: Nautilus FNS Plus Fiberglass



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
4	58001100	Nut, knurled brass	Yes	1 Day(s)	$2.14
4	98211400	Nut, Brass plated	Yes	1 Day(s)	$2.75
5	59002700	Tie Rod, 60 sq.ft.filter	Yes	1 Day(s)	$35.71
5	59002100	Tie Rod,48 sq.ft.filter	Yes	1 Day(s)	$35.71
5	59001500	Tie Rod, 36 sq.ft.filter	Yes	1 Day(s)	$34.98
5	59000800	Tie Rod, 24 sq.ft.filter	Yes	1 Day(s)	$31.75
6	59023700	Manifold, top w/ air bleed	Yes	1 Day(s)	$113.38
7	59023600	Internal air bleed assy.	Yes	1 Day(s)	$18.50
8	98725800	Template, filter	Yes	1 Day(s)	$4.40
9	59003000	Grid, Ig. 30 in., 60 sq. ft. filter	Yes	1 Day(s)	$63.78
9	59002400	Grid, Ig. 24 in., 48 sq. ft. filter	Yes	1 Day(s)	$59.27
9	59001800	Grid, Ig. 18 in., 36 sq.ft. filter	Yes	1 Day(s)	$42.28
9	59001100	Grid, Ig. 12 in., 24 sq.ft. filter	Yes	1 Day(s)	$32.74
10	59001000	Grid, sm. 12 in., 24 sq. ft. filter	Yes	1 Day(s)	$37.78
10	59001700	Grid, sm. 18 in., 36 sq. ft. filter	Yes	1 Day(s)	$46.29
10	59002300	Grid, sm. 24 in., 48 sq. ft. filter	Yes	1 Day(s)	$58.79
10	59002900	Grid, sm. 30 in., 60 sq. ft. filter	Yes	1 Day(s)	$71.64
11	59023300	Assy., element grid, complete, 60 sq. ft. filter	Yes	1 Day(s)	$412.35
11	59023400	Assy., element grid, complete, 48 sq. ft. filter	Yes	1 Day(s)	$378.05
11	59023500	Assy., element grid, complete, 36 sq. ft. filter	Yes	1 Day(s)	$343.62
11	59023800	Assy., element grid, complete, 24 sq. ft. filter	Yes	1 Day(s)	$268.90
12	98211400	Nut, 1/4-20, plated brass	Yes	1 Day(s)	$2.75
13	59000500	Spider, grid locator	Yes	1 Day(s)	$61.34
14	58001000	Nut, lock, hex, nylon	Yes	1 Day(s)	$1.89
19	190034	Assy., standpipe, outlet, 24 sq. ft. filter	Yes	1 Day(s)	$36.88
19	190035	Assy., standpipe, outlet, 36 sq. ft. filter	Yes	1 Day(s)	$39.52
19	190036	Assy., standpipe, outlet, 48 sq. ft. filter	Yes	1 Day(s)	$45.71
19	190037	Assy., standpipe, outlet, 60 sq. ft. filter	Yes	1 Day(s)	$43.07
22	190043	Assy., pipe, inlet (includes bulkhead)	Yes	1 Day(s)	$61.22
25	170015	Tank btm., assy., 24 sq. ft. filter	Yes	1 Day(s)	$291.02
25	170016	Tank btm., assy., 36 sq. ft. filter	Yes	1 Day(s)	$288.65
25	170017	Tank btm., assy., 48 sq. ft. filter	Yes	1 Day(s)	$291.49
25	170018	Tank btm., assy., 60 sq. ft. filter	Yes	1 Day(s)	$292.83
26	170019	Tank lid, 24 sq.ft. filter	Yes	1 Day(s)	$135.32
26	170020	Tank lid, 36 sq.ft. filter	Yes	1 Day(s)	$164.87
26	170021	Tank lid, 48 sq.ft. filter	Yes	1 Day(s)	$199.63
26	170022	Tank lid, 60 sq.ft. filter	Yes	1 Day(s)	$232.83
27	59000600	O-ring, bulkhead	Yes	1 Day(s)	$6.30
