SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

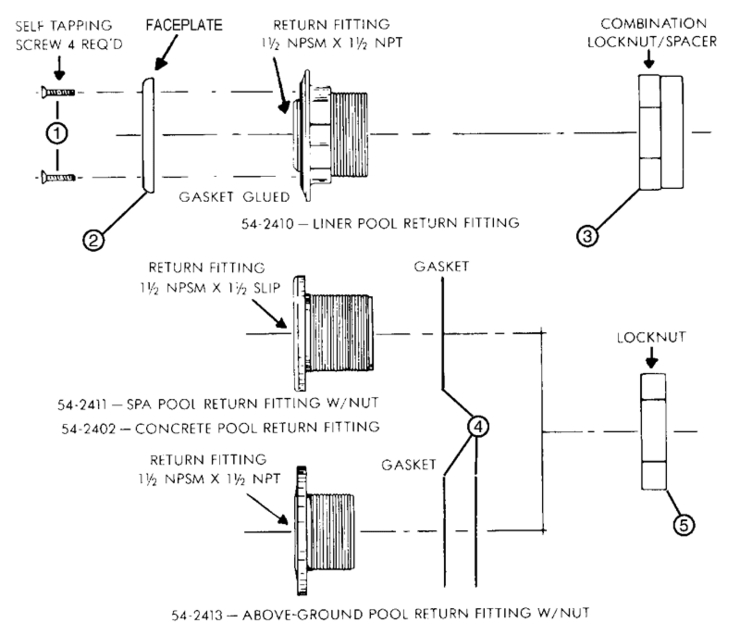

Here is the schematic view you requested:

Category: Hydro Fittings
Manufacturer name: Pentair
Model Name: Pool Fittings:

Pentair Pool-Fittings replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 87200100 Nut, lock ABS, 2 in., white Yes 1 Day(s) $4.15

-

 87200200 Gasket, 2 in. i.d. thin Yes 1 Day(s) $6.37

-

 87200700 Ring, friction ABS Yes 1 Day(s) $3.75

-

 87200800 Nut, liner sealing 2 in., ABS Yes 1 Day(s) $4.09

-

 39102900 O-ring, Union Kit Yes 1 Day(s) $2.97

-

 98212700 Screw for 10 in. grate for P/N 87103100 No N/A N/A N/A

-

 98212600 Screw for 10 in. Anti-vortex Plate for P/N 87101600 Yes 1 Day(s) $1.17

-

 87101600 Anti-vortex Plate w/screws, 10 in. Yes 1 Day(s) $22.48
