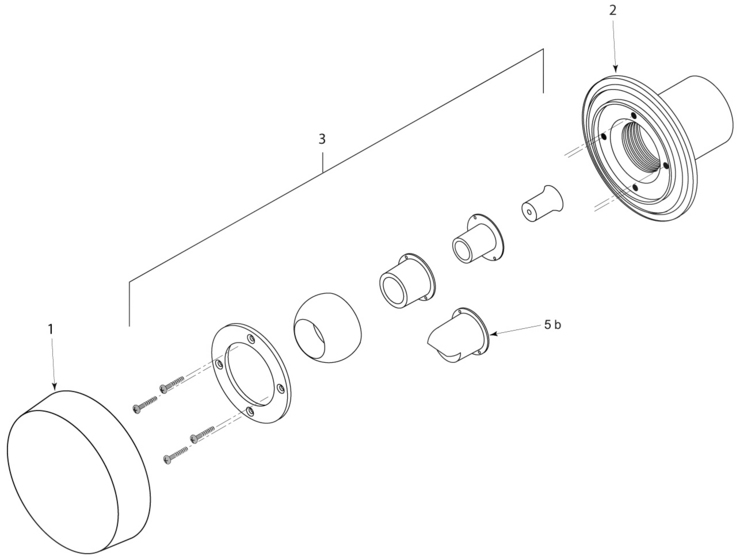

Here is the schematic view you requested:

Category: Hydro Fittings

Manufacturer name: Pentair

Model Name: Pool Inlets:



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	84280005	Shield, 08429-0000, 1 1/2in. Inlet, white	No	N/A	N/A	N/A
1	84280005	Shield, 08429-0000, 1 1/2in. Inlet, white	No	N/A	N/A	N/A
1	084280005B	Shield, 08012-0100, 1 1/2in. Inlet, grey	No	N/A	N/A	N/A
1	084280005B	Shield, 08012-0100, 1 1/2in. Inlet, grey	No	N/A	N/A	N/A
2	84290014B	Body, 08012-0100, 1 1/2in. Inlet, grey	No	N/A	N/A	N/A
2	84280014B	Body, 08428-0100, 1 1/4in. Inlet, grey	No	N/A	N/A	N/A
2	84290014	Body, 08429-0000, 1 1/2in. Inlet, white	Yes	1 Day(s)	$9.30
2	84280014B	Body, 08428-0100, 1 1/4in. Inlet, grey	No	N/A	N/A	N/A
3	84280001	Model 08429-0000, 1 1/2 in. inlet, white, ball/face plate kit includes: Screw, No.8, 32 X 1/2in.; Face plate; Ball; nozzle - 3/4	Yes	1 Day(s)	$23.45
3	84280001	Model 08429-0000, 1 1/2 in. inlet, white, ball/face plate kit includes: Screw, No.8, 32 X 1/2in.; Face plate; Ball; nozzle - 3/4	Yes	1 Day(s)	$23.45
3	084280001B	Model 08012-0000, 1 1/2 in. inlet, grey, ball/face plate kit includes: Screw, No.8, 32 X 1/2in.; Face plate; Ball; nozzle - 3/4i	Yes	1 Day(s)	$22.81
3	084280001B	Model 08012-0000, 1 1/2 in. inlet, grey, ball/face plate kit includes: Screw, No.8, 32 X 1/2in.; Face plate; Ball; nozzle - 3/4i	Yes	1 Day(s)	$22.81
