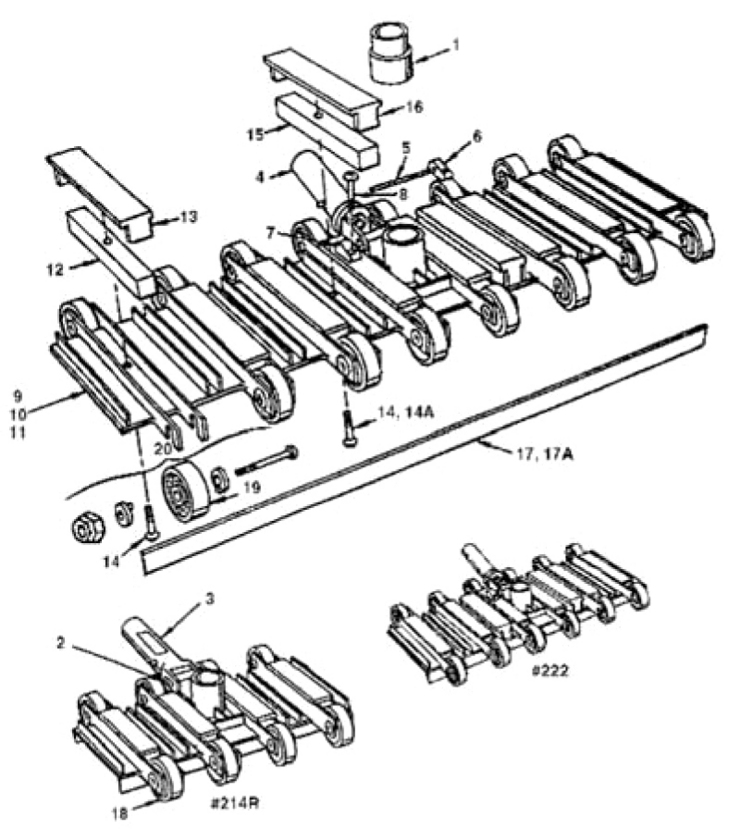

Here is the schematic view you requested:

Category: Maintenance Equipment

Manufacturer name: Pentair

Model Name: ProVac Models 214R, 222R, 214, 222, 229



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	R201566	Hose swivel adapter	Yes	1 Day(s)	$5.49
2	R201496	Stainless steel nut & bolt for handle (#214, #214R & #222R)	Yes	1 Day(s)	$1.79
3	R201476	#192 Snap-adapt handle (#214R, #222R)	Yes	1 Day(s)	$3.63
4	R201408	#152 Metal swivel handle (#214, #222 & #229)	Yes	1 Day(s)	$25.02
5	R03161	Stainless steel shaft (#222 & #229)	Yes	1 Day(s)	$6.17
6	R03087	Left shaft retainer	Yes	1 Day(s)	$1.37
7	R03088	Right shaft retainer	Yes	1 Day(s)	$1.37
8	R01023	Screw, shaft retainer	Yes	1 Day(s)	$1.51
9	R03152	Flexible body only (#214)	Yes	1 Day(s)	$5.90
10	R03153	Flexible body only (#222)	Yes	1 Day(s)	$19.98
11	R03154	Flexible body only (#229)	Yes	1 Day(s)	$17.07
12	R02006	Lead only	Yes	1 Day(s)	$3.51
13	R03128	Lead cover only	Yes	1 Day(s)	$1.56
14	R01074	Screw, lead cover 5/8 in.	Yes	1 Day(s)	$1.56
14A	R01075	Screw, lead cover 3/4 in.	Yes	1 Day(s)	$1.56
15	R02009	Lead, large only	Yes	1 Day(s)	$7.29
16	R03160	Lead cover, large only	Yes	1 Day(s)	$6.15
17	R201776	White flex strip, short leg - 5 ft. bubble pack	Yes	1 Day(s)	$5.29
17A	R201778	Blue flex strip, long leg - 5 ft. bubble pack	Yes	1 Day(s)	$4.08
18	R03021	#174 Solid plastic wheel (#214R, #222R)	Yes	1 Day(s)	$1.96
19	R201557	#175 Ball bearing polyurethane wheel	Yes	1 Day(s)	$7.31
20	R201456	Axle assembly, does not include wheel (#214R, #222R)	Yes	1 Day(s)	$1.76
20A	R201458	Axle assembly, does not include wheel (#214, #222, #229)	Yes	1 Day(s)	$1.79
