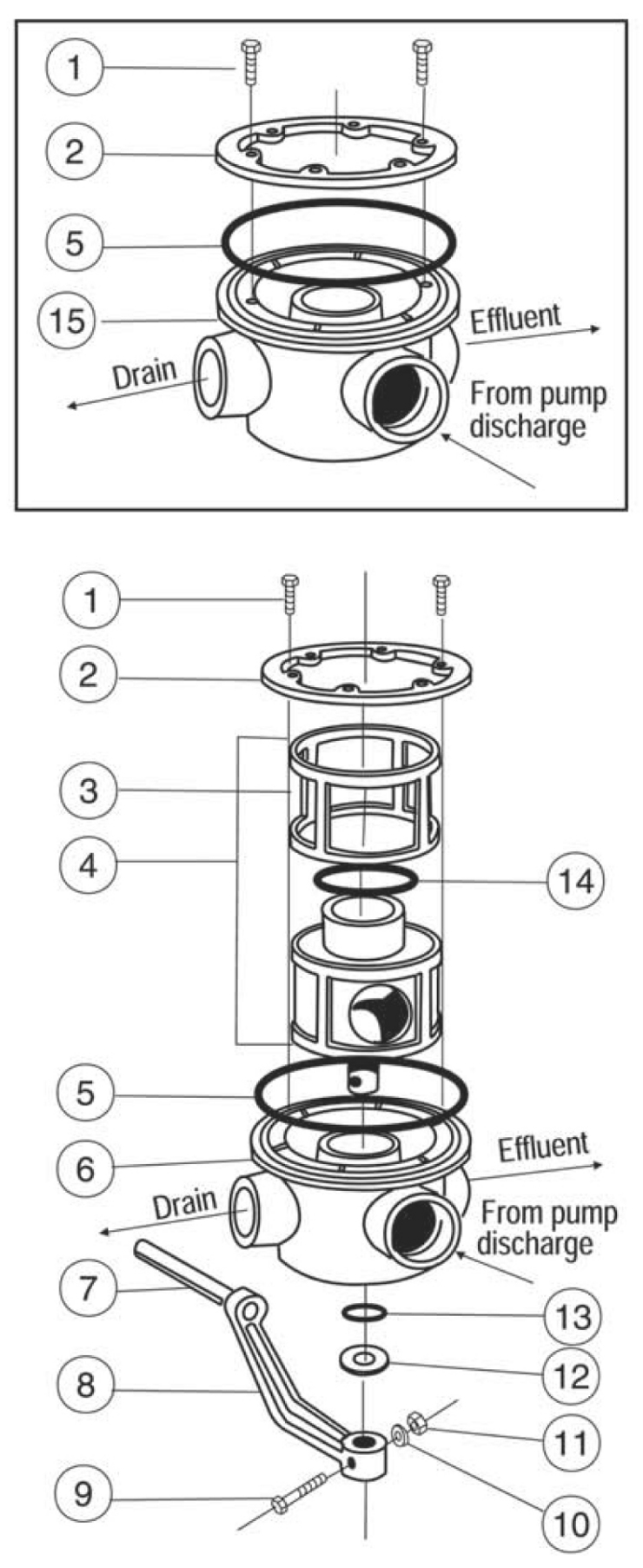

Here is the schematic view you requested:

Category: DE Filter Parts

Manufacturer name: Pentair

Model Name: SM & SMBW 2000 Series Valves



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	73462	Valve BW with Noryl rotor complete	Yes	1 Day(s)	$544.39
1	74927	Screw 1/4-20 x 5/8 in. HH s/s	Yes	1 Day(s)	$0.90
2	70731	Compression ring	Yes	1 Day(s)	$52.71
3	71720	Seal, BW valve rotor tapered (1981 - present)	Yes	1 Day(s)	$10.99
4	73370	Rotor valve Noryl w/tapered seal	Yes	1 Day(s)	$83.43
5	71427	O-ring 2-259 valve 3 port	Yes	1 Day(s)	$3.52
6	72112	Valve body, brass mach. 2 in. thread	Yes	1 Day(s)	$458.82
7	190026	Handle SMBW rotor s/s	Yes	1 Day(s)	$42.62
8	70971	Handle extension BW brass	Yes	1 Day(s)	$79.00
10	72172	Washer lock 1/4 in. s/s	Yes	1 Day(s)	$0.14
11	71406	Nut 1/4-20 s/s hex	Yes	1 Day(s)	$0.90
12	72166	Washer BW spacer	Yes	1 Day(s)	$2.53
13	71435	O-ring Buna-N 2-113 rotor shaft	No	N/A	N/A	N/A
15	72901	Collector brass 3 port 2 in. SM series threaded	Yes	1 Day(s)	$443.38
