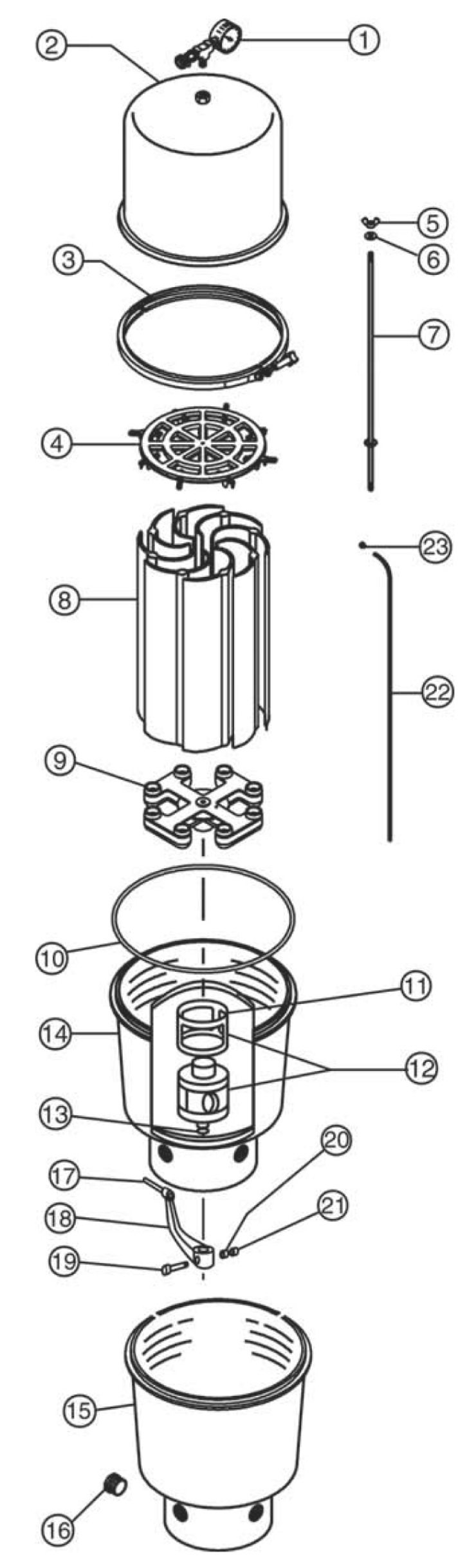

Here is the schematic view you requested:

Category: DE Filter Parts

Manufacturer name: Pentair

Model Name: SM & SMBW 4000 Series



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	73027	Complete gauge assy, includes (c)	Yes	1 Day(s)	$63.65
1	155050	Gauge 1/4 in. 60 lbs.	Yes	1 Day(s)	$26.19
1	71982	Tee 1/4 bass	Yes	1 Day(s)	$6.82
1	71390	Nipple plastic 1/4 in.	Yes	1 Day(s)	$3.68
1	75207	Valve air release 1/4 in.	Yes	1 Day(s)	$8.12
1	273550	Manual air relief 4060	Yes	1 Day(s)	$57.90
1	154412	Nut 2 in. (4060 only)	Yes	1 Day(s)	$8.26
2	197137	Lid SM/SMBW 4060 replacement	Yes	1 Day(s)	$312.19
2	197136	Lid SM/SMBW 4048 replacement	Yes	1 Day(s)	$447.88
2	197135	Lid SM/SMBW 4036 replacement	Yes	1 Day(s)	$294.45
2	197134	Lid SM/SMBW 4024 replacement	Yes	1 Day(s)	$234.91
3	197020	Clamp ring assy.	Yes	1 Day(s)	$193.26
3	76033	Knob clamping band (b)	No	N/A	N/A	N/A
3	71136	Knob clamping band (a)	Yes	1 Day(s)	$18.32
4	197120	Holding wheel 4060	Yes	1 Day(s)	$22.59
4	71019	Holding wheel 4024,4036,4048	Yes	1 Day(s)	$26.76
5	71404	Nut wing 1/4 in. 20 s/s	Yes	1 Day(s)	$2.52
6	72173	Washer 5/16in. i.d. x 3/4 in. o.d.	Yes	1 Day(s)	$1.02
7	72867	Center rod SM/SMBW 4060 39 in.	Yes	1 Day(s)	$23.95
7	72880	Center rod SM/SMBW 4048 33 in.	Yes	1 Day(s)	$48.84
7	72869	Center rod SM/SMBW 4036 27 in.	Yes	1 Day(s)	$34.78
7	72870	Center rod SM/SMBW 4024 21 in.	Yes	1 Day(s)	$19.52
8	74925	Element 4060 30 in.	Yes	1 Day(s)	$72.02
8	74924	Element 4048 24 in.	Yes	1 Day(s)	$60.48
8	74923	Element 4036 18 in.	Yes	1 Day(s)	$49.88
8	74922	Element 4024 12 in.	Yes	1 Day(s)	$40.77
9	73270	Manifold 2000/4000 series 8 holes	Yes	1 Day(s)	$38.83
10	71439	O-ring, 4000 series lid	Yes	1 Day(s)	$18.95
11	71720	Seal BW valve rotor tapered	Yes	1 Day(s)	$10.99
12	73370	Rotor valve Noryl w/seal (incl. key no.s 11 & 13)	Yes	1 Day(s)	$83.43
13	71435	O-ring 2113	No	N/A	N/A	N/A
14	197130	Tank btm, SMBW	Yes	1 Day(s)	$904.75
15	197126	Tank btm., SM	Yes	1 Day(s)	$491.44
16	71559	Plug PVC 2 in,SM only	Yes	1 Day(s)	$5.71
17	190026	Handle SMBW rotor s/s	Yes	1 Day(s)	$42.62
18	70971	Handle extension BW brass	Yes	1 Day(s)	$79.00
20	72172	Washer lock 1/4 in. s/s	Yes	1 Day(s)	$0.14
21	71406	Nut 1/4-20 s/s hex	Yes	1 Day(s)	$0.90
22	75279	Vent tube 1/4 in., 46 in. all models	Yes	1 Day(s)	$7.70
23	73691	Vent tube screen cap	Yes	1 Day(s)	$0.93
