SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

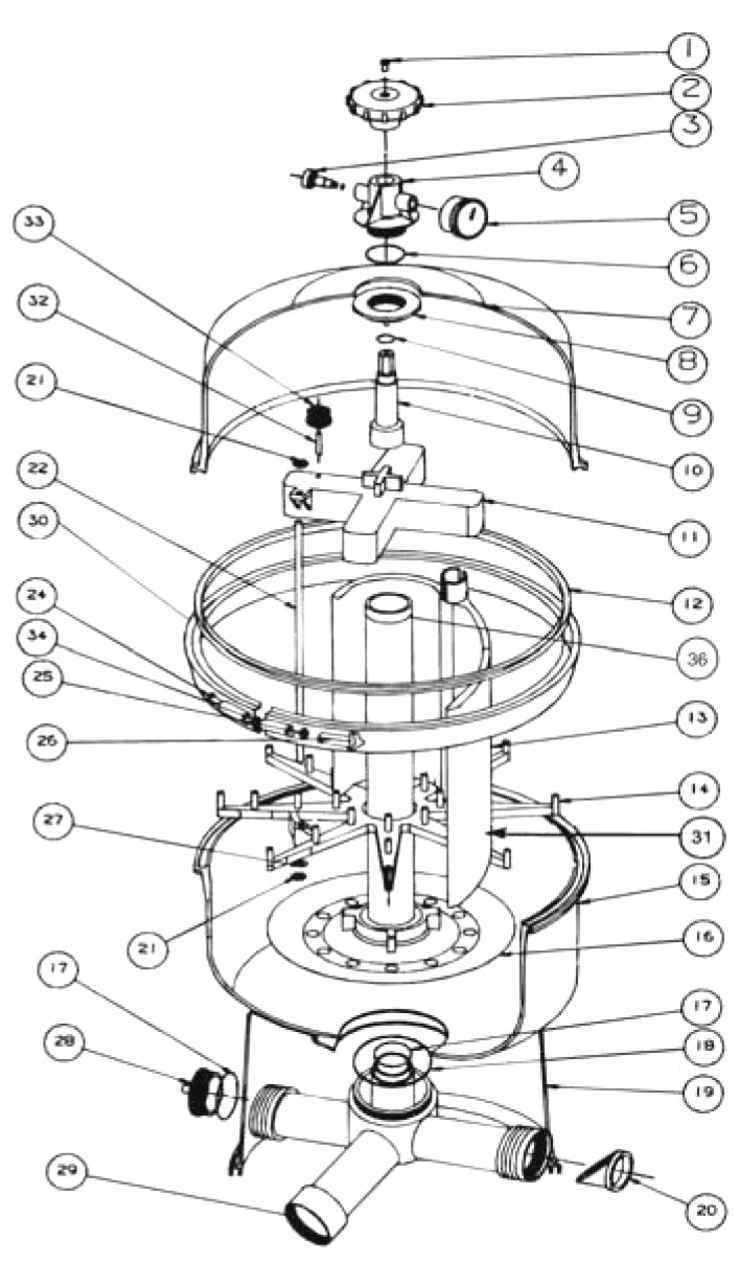

Here is the schematic view you requested:

Manufacturer name: Pentair

Model Name: Star



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	354265	Screw - 5/16 - 18 hex wsh. hd.	Yes	1 Day(s)	$1.22
-	750014	Base vacuum formed	Yes	1 Day(s)	$127.42
-	191495	Wrench - Star center piping	Yes	1 Day(s)	$652.92
-	191507	Filter-ST50 w/o foot	Yes	1 Day(s)	$600.05
-	191521	Filter-ST80 w/o foot	No	N/A	N/A	N/A
-	750016	Piping assy. Star systems (includes: piping, parts, & O-rings)	Yes	1 Day(s)	$62.10
-	191930	Filter-ST35 w/o foot	No	N/A	N/A	N/A
-	750014	Base vacuum formed	Yes	1 Day(s)	$127.42
1	552472	Screw-flathead #12 x 1 in.	Yes	1 Day(s)	$0.77
2	191472	Knob - engagement shaft	Yes	1 Day(s)	$11.47
3	272515	Air bleeder w/o-ring	Yes	1 Day(s)	$5.73
4	191475	Adapter-tank top	Yes	1 Day(s)	$21.87
5	155050	Gauge - back mount pressure	Yes	1 Day(s)	$26.19
6	155564	O-ring 47mm x 4mm	Yes	1 Day(s)	$7.18
7	191954	Top with knob-tank ST35	No	N/A	N/A	N/A
7	191509	Top with knob - tank ST80 black	Yes	1 Day(s)	$228.11
7	191500	Top with knob - tank ST40/50 black	Yes	1 Day(s)	$156.04
8	191478	Nut -1 7/8 in.-8 in. buttress	Yes	1 Day(s)	$5.62
9	191479	O-ring 7/8 in. x 11/8 in. x 1/8 in.	Yes	1 Day(s)	$0.74
10	191480	Shaft - engagement ST40/50	No	N/A	N/A	N/A
10	191955	Shaft - engagement ST35	Yes	1 Day(s)	$12.75
11	191950	Manifold assy.	Yes	1 Day(s)	$70.02
12	174704	O-ring - tank	Yes	1 Day(s)	$20.41
13	191321	Grid - ST35 13 1/8 in.	Yes	1 Day(s)	$21.69
13	191322	Grid - ST40/50 19 3/4 in.	Yes	1 Day(s)	$29.37
13	191510	Grid - ST80 26 1/4 in.	Yes	1 Day(s)	$36.23
14	191467	Retainer - grid btm.	Yes	1 Day(s)	$32.93
15	191511	Btm.- tank ST80 black	Yes	1 Day(s)	$113.33
15	191504	Btm.- tank ST35 black	No	N/A	N/A	N/A
15	750009	Btm.- tank ST40/50 black	Yes	1 Day(s)	$108.05
16	191942	Pipe - center w/diffuser ST35 w/o-ring	Yes	1 Day(s)	$88.35
16	191483	Pipe - center w/diffuser ST40/50 w/o-ring	Yes	1 Day(s)	$72.25
16	191512	Pipe - center w/diffuser ST80 w/o-ring	Yes	1 Day(s)	$41.49
17	191474	O-ring 1 3/4 in. x 2in. x 1/8 in.	Yes	1 Day(s)	$1.12
18	191424	O-ring 3 1/2 in. x 3 7/8 in. x 3/16 in.	Yes	1 Day(s)	$6.66
19	191423	Foot - tank	Yes	1 Day(s)	$50.98
20	191437	Check valve assy.	Yes	1 Day(s)	$32.35
21	98211400	Nut - hex 1/4 - 20 serrated s/s	Yes	1 Day(s)	$2.75
22	191513	Rod - 1/4 in. x 28 in. ST80	Yes	1 Day(s)	$17.34
22	191430	Rod - 1/4 in. x 21 1/2 in. s/s ST40/50,2 req.	Yes	1 Day(s)	$13.86
22	191948	Rod - 1/4 in. x 15 in. s/s ST35	Yes	1 Day(s)	$13.34
24	152060	Bolt - 5/16 in. - 18 x 4 1/4 in. carriage	Yes	1 Day(s)	$9.38
25	72173	Washer - flat 5/16 in. s/s	Yes	1 Day(s)	$1.02
26	174882	Knob - band assy.	Yes	1 Day(s)	$26.99
27	72172	Washer- lock 1/4, in. s/s	Yes	1 Day(s)	$0.14
28	552622	Plug - 1 1/2 in. w/o-ring	Yes	1 Day(s)	$1.49
29	191469	Piping - btm. w/check valve order with locknut (191505)	Yes	1 Day(s)	$114.08
30	174880	Band assy. /comp. (b)	Yes	1 Day(s)	$100.50
31	191519	Grid assy. /comp. ST80	Yes	1 Day(s)	$298.36
31	191953	Grid assy. /comp. ST35 (a)	Yes	1 Day(s)	$214.61
31	191486	Grid assy. /comp. ST40/50 (a)	Yes	1 Day(s)	$247.93
32	191606	Tubing 1/4 in.	Yes	1 Day(s)	$3.52
33	191329	Strainer-air relief	Yes	1 Day(s)	$7.04
34	175020	Ring - retaining carriage bolt	Yes	1 Day(s)	$7.11
36	191517	Center Pipe O-ring	Yes	1 Day(s)	$0.93
