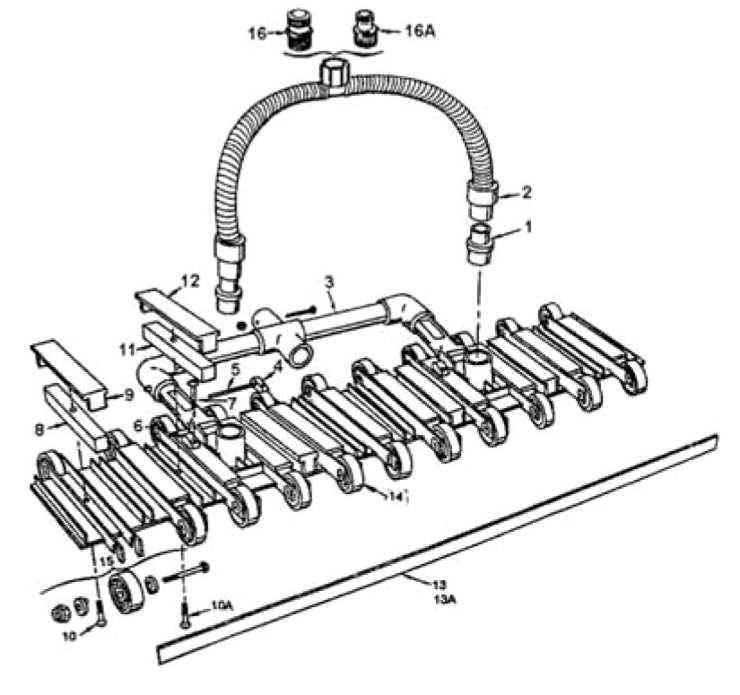

Here is the schematic view you requested:

Category: Maintenance Equipment

Manufacturer name: Pentair

Model Name: Super ProVac Model 241



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	R201566	Hose swivel adapter	Yes	1 Day(s)	$5.49
2	R201756	Manifold assembly	Yes	1 Day(s)	$47.50
3	R201780	Handle joining assembly	Yes	1 Day(s)	$44.23
4	R03087	Left shaft retainer	Yes	1 Day(s)	$1.37
5	R03161	S/S shaft	Yes	1 Day(s)	$6.17
6	R03088	Right shaft retainer	Yes	1 Day(s)	$1.37
7	R01023	Screws, shaft retainer	Yes	1 Day(s)	$1.51
8	R02006	Lead only	Yes	1 Day(s)	$3.51
9	R03128	Lead cover only	Yes	1 Day(s)	$1.56
10A	R01075	Screws, lead cover 3/4 in.	Yes	1 Day(s)	$1.56
10	R01074	Screws, lead cover 5/8 in.	Yes	1 Day(s)	$1.56
11	R02009	Lead, large only	Yes	1 Day(s)	$7.29
12	R03160	Lead cover, large only	Yes	1 Day(s)	$6.15
13	R201776	White flex strip, short leg -5 ft. bubble pack	Yes	1 Day(s)	$5.29
13A	R201778	Blue flex strip, long leg -5 ft. bubble pack	Yes	1 Day(s)	$4.08
14	R201557	#175 Ball bearing polyurethane wheel	Yes	1 Day(s)	$7.31
15	R201458	Axle assembly, does not include wheel	Yes	1 Day(s)	$1.79
16	R03120	2 in. Insert male adapter	Yes	1 Day(s)	$12.38
16A	R03121	1 1/2 in. Insert male adapter	Yes	1 Day(s)	$3.55
