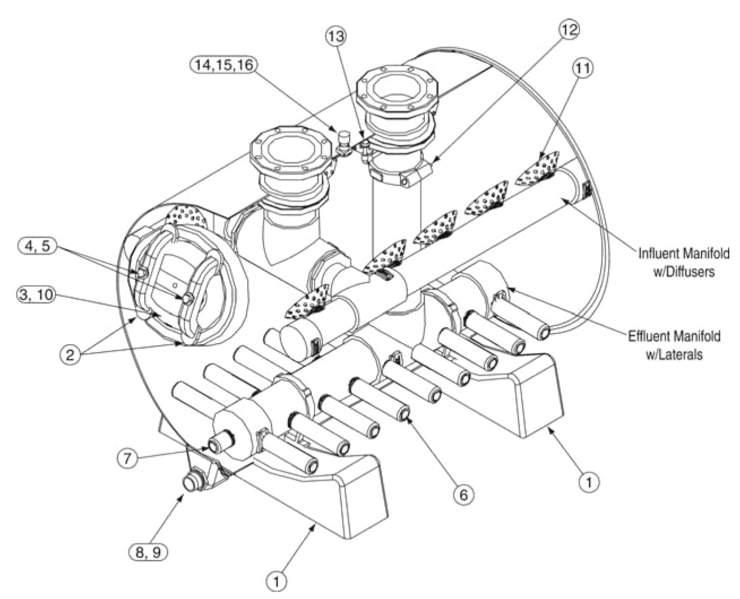

Here is the schematic view you requested:

Category: Sand Filter Parts
Manufacturer name: Pentair
Model Name: THS Series Horizontal Sand Filter

Pentair THS-Series-Horizontal-Sand-Filter replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 B4986 Media dump assy. No N/A N/A N/A

1

 B4848BL Tank saddle, black No N/A N/A N/A

2

 B4856 Yoke, dog (Manway) No N/A N/A N/A

3

 B4852ABL Glass filled Manway cover, black No N/A N/A N/A

4

 94910 HHMB, 3/4in. X 4in., T3l6 S/S No N/A N/A N/A

5

 94860 3/4 in. Flat washer, T3l6 S/S No N/A N/A N/A

6

 B4804 10 in. Effluent lateral No N/A N/A N/A

6

 B4804 10 in. Effluent lateral No N/A N/A N/A

6

 B4804 10 in. Effluent lateral No N/A N/A N/A

6

 B4804 10 in. Effluent lateral No N/A N/A N/A

7

 B4803 3-1/2 in. Effluent lateral No N/A N/A N/A

7

 B4803 3-1/2 in. Effluent lateral No N/A N/A N/A

8

 B4980 Media dump assy. No N/A N/A N/A

9

 B4981 1-1/2 in. NPT tank adapter No N/A N/A N/A

10

 B4951 Manway o-ring No N/A N/A N/A

11

 B4806 Shower head diffuser Yes 1 Day(s) $28.22

11

 B4806 Shower head diffuser Yes 1 Day(s) $28.22

11

 B4806 Shower head diffuser Yes 1 Day(s) $28.22

11

 B4806 Shower head diffuser Yes 1 Day(s) $28.22

12

 B4572 6 in. Grooved coupling assy. No N/A N/A N/A

13

 B4578 Automatic air relief assy. No N/A N/A N/A

14

 B4974BAN 1/2 in. Manual air relief cap No N/A N/A N/A

15

 B4970BAN 1/2 in.Threaded nipple No N/A N/A N/A

16

 B4979BAN 1/2 in. Bulkhead fitting No N/A N/A N/A
