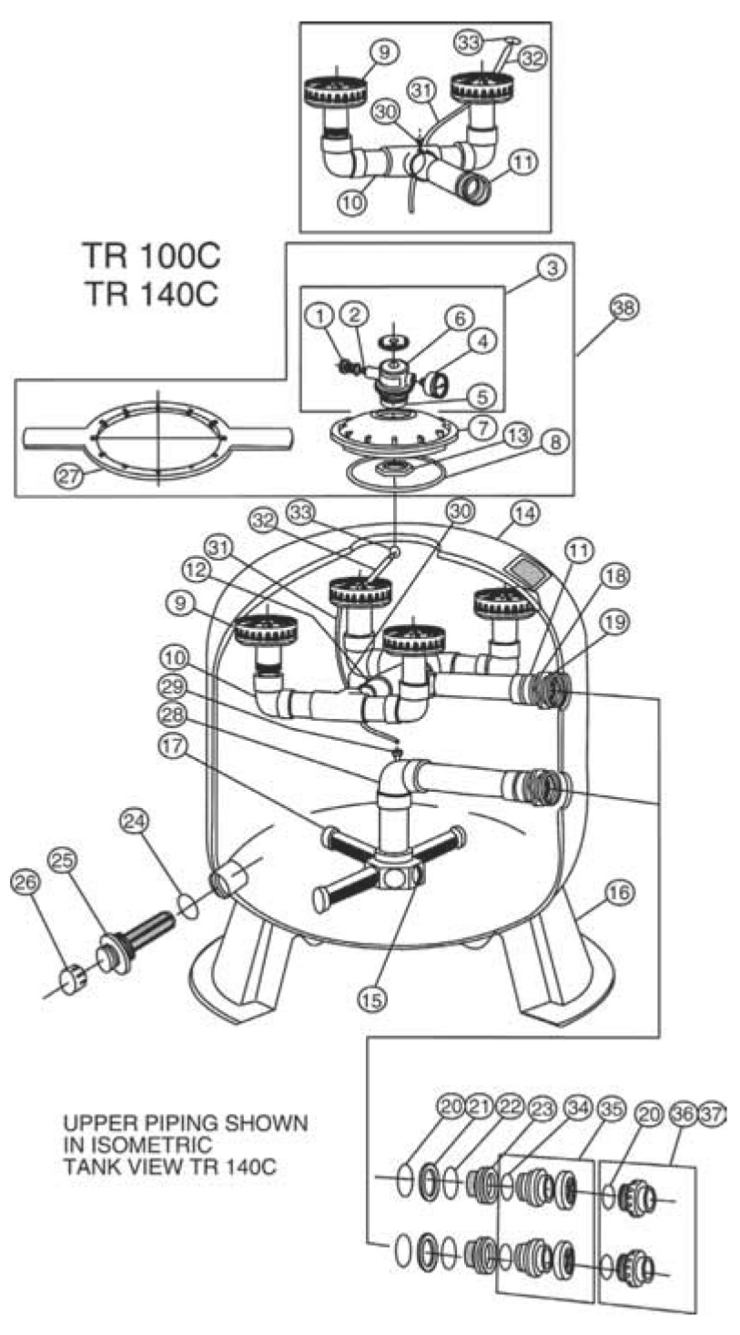

Here is the schematic view you requested:

Category: Sand Filter Parts

Manufacturer name: Pentair

Model Name: TR100C & TR140C



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	154407	Tape ft. mounting	Yes	1 Day(s)	$7.92
1	273512	Air bleeder w/ O-ring	Yes	1 Day(s)	$6.52
2	273513	O-ring air bleeder screw	Yes	1 Day(s)	$0.54
3	273564	Manual air relief body assy.	Yes	1 Day(s)	$61.06
4	155050	Pressure gauge	Yes	1 Day(s)	$26.19
5	274495	O-ring 3/16 in. x 2-5/8 in. i.d.	Yes	1 Day(s)	$0.81
6	273564	Valve body machined	Yes	1 Day(s)	$61.06
7	154575	Closure 8 1/2 in. btr.	Yes	1 Day(s)	$38.06
8	152509	Square ring 8 1/2 in.	Yes	1 Day(s)	$4.20
9	154599	DiffuserTR140C (a)	Yes	1 Day(s)	$37.98
9	154599	DiffuserTR140C (a)	Yes	1 Day(s)	$37.98
10	156355	Piping assy, upper TR100C, TR140C (a)	Yes	1 Day(s)	$58.60
11	156344	Piping assy, upper inlet TR100C, TR140C	Yes	1 Day(s)	$41.26
12	156354	Piping connecting assy, upper TR140C	Yes	1 Day(s)	$46.54
13	154412	Nut 2 in. internal	Yes	1 Day(s)	$8.26
14	153430	Tank & ft. assy. TR100C-8 1/2 in. btr. thd. - blk	Yes	1 Day(s)	$923.85
14	153431	Tank & ft. assy. TR140C-8 1/2 in. btr. thd. - blk	Yes	1 Day(s)	$1346.37
15	154453	Hub lateral TR100C/TR140C	Yes	1 Day(s)	$60.24
16	154596	Foot 24 in. dia. TR100C/TR140C	Yes	1 Day(s)	$106.20
17	152202	Lateral 9 1/8 in. TR100C (8 req.)	Yes	1 Day(s)	$7.20
17	154540	Lateral 12 in. TR140C (8 req.)	Yes	1 Day(s)	$16.51
18	154412	Locknut 2 in. internal	Yes	1 Day(s)	$8.26
19	154416	Spacer 2 in. internal	Yes	1 Day(s)	$12.53
20	154492	O-ring 2 in. bulkhead	Yes	1 Day(s)	$2.63
21	154408	Spacer 2 in. external	Yes	1 Day(s)	$12.53
22	154538	Gasket 2 in. bulkhead	Yes	1 Day(s)	$2.04
23	154405	Bulkhead 2 in.	Yes	1 Day(s)	$51.91
24	154492	O-ring 3/16 in. x 2 5/8 in. i.d., use 274494	Yes	1 Day(s)	$2.63
25	152220	2 in. sand drain	Yes	1 Day(s)	$23.43
26	154871	Cap thd. 1 1/2 in.	Yes	1 Day(s)	$4.81
27	154527	Wrench 8 1/2 in. closure	Yes	1 Day(s)	$16.77
27	151608	Aluminum Wrench 8 1/2 in.	Yes	1 Day(s)	$170.85
28	154489	Piping assy, lower TR140C	Yes	1 Day(s)	$42.44
28	154807	Piping assy, lower TR100C	Yes	1 Day(s)	$40.55
29	150036	Connector air relief tube (c)	Yes	1 Day(s)	$0.93
30	273071	Screw#1418-8TR100C (a)	Yes	1 Day(s)	$0.99
31	154437	Tube air relief TR100C (b)	Yes	1 Day(s)	$14.39
31	150042	Tube air relief TR140C (c)	Yes	1 Day(s)	$8.13
31	154438	Tube air relief TR140C (b)	Yes	1 Day(s)	$18.60
31	150041	Tube air relief TR100C (c)	Yes	1 Day(s)	$8.71
32	154507	Spacer air vent strainer TR100C 6 3/4 in.	Yes	1 Day(s)	$4.90
32	154508	Spacer air vent strainer TR140C 10 5/16 in.	Yes	1 Day(s)	$6.37
33	154578	Strainer air relief (b)	Yes	1 Day(s)	$10.71
33	150035	Strainer air relief (c)	Yes	1 Day(s)	$5.42
34	274494	O-ring valve adptr.	Yes	1 Day(s)	$4.84
36	271092	2 in. thd. adptr. kit for inst. w/o valve (pair)	Yes	1 Day(s)	$45.81
37	271094	1 1/2in. thd. adptr. kit for inst. w/o valve (pair)	Yes	1 Day(s)	$47.73
38	154856	Kit closure 8 1/2 in. btr. thd. - blk.	Yes	1 Day(s)	$139.02
