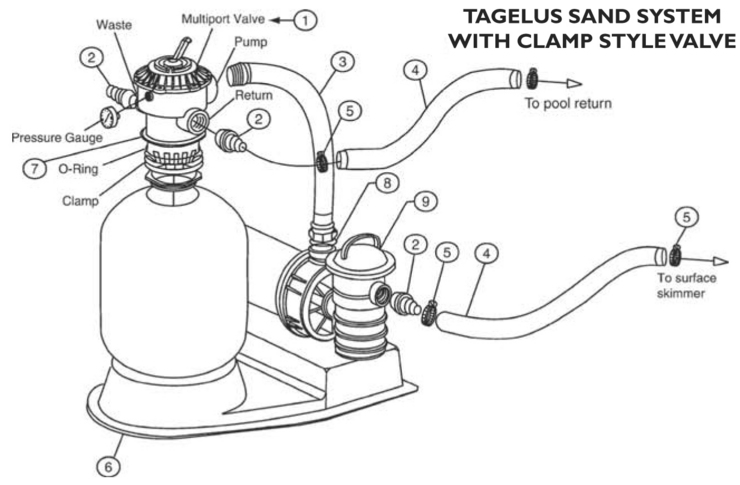

Here is the schematic view you requested:

Category: Sand Filter Parts

Manufacturer name: Pentair

Model Name: Tagelus System



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	155161	Teflon tape	Yes	1 Day(s)	$1.49
-	155161	Teflon tape	Yes	1 Day(s)	$1.49
1	262506	Valve 1 1/2 in. 6-way clamp style	Yes	1 Day(s)	$146.46
1	261130	Valve 1 1/2 in. 6-way btr. thread-TA (b)	Yes	1 Day(s)	$149.54
1	261124	Valve 1 1/2 in. 6-way ""V"" thread-TA (a)	Yes	1 Day(s)	$149.54
2	711006	Hose adptr. tapered, 3 req.	Yes	1 Day(s)	$3.97
3	155285	PVC hose w/quick connect TA35 & TA35D	Yes	1 Day(s)	$34.26
3	155278	PVC hose w/quick connect TA40 & TA40D	Yes	1 Day(s)	$35.73
3	155283	PVC hose w/quick connect TA50 & TA50D	Yes	1 Day(s)	$36.75
4	155151	Hose, 1 1/2 in. x 6 ft., filter/pump to pool	Yes	1 Day(s)	$66.08
4	155005	Hose, 1 1/2 in. x 12 ft., filter/pump to pool	Yes	1 Day(s)	$77.02
5	711004	Hose clamp 1 1/2 in. wire type, 4 req.	Yes	1 Day(s)	$3.59
6	155223	Base assy.	No	N/A	N/A	N/A
7	152165	Clamp-TAD system	Yes	1 Day(s)	$20.14
8	354571	O-ring	Yes	1 Day(s)	$1.99
