SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

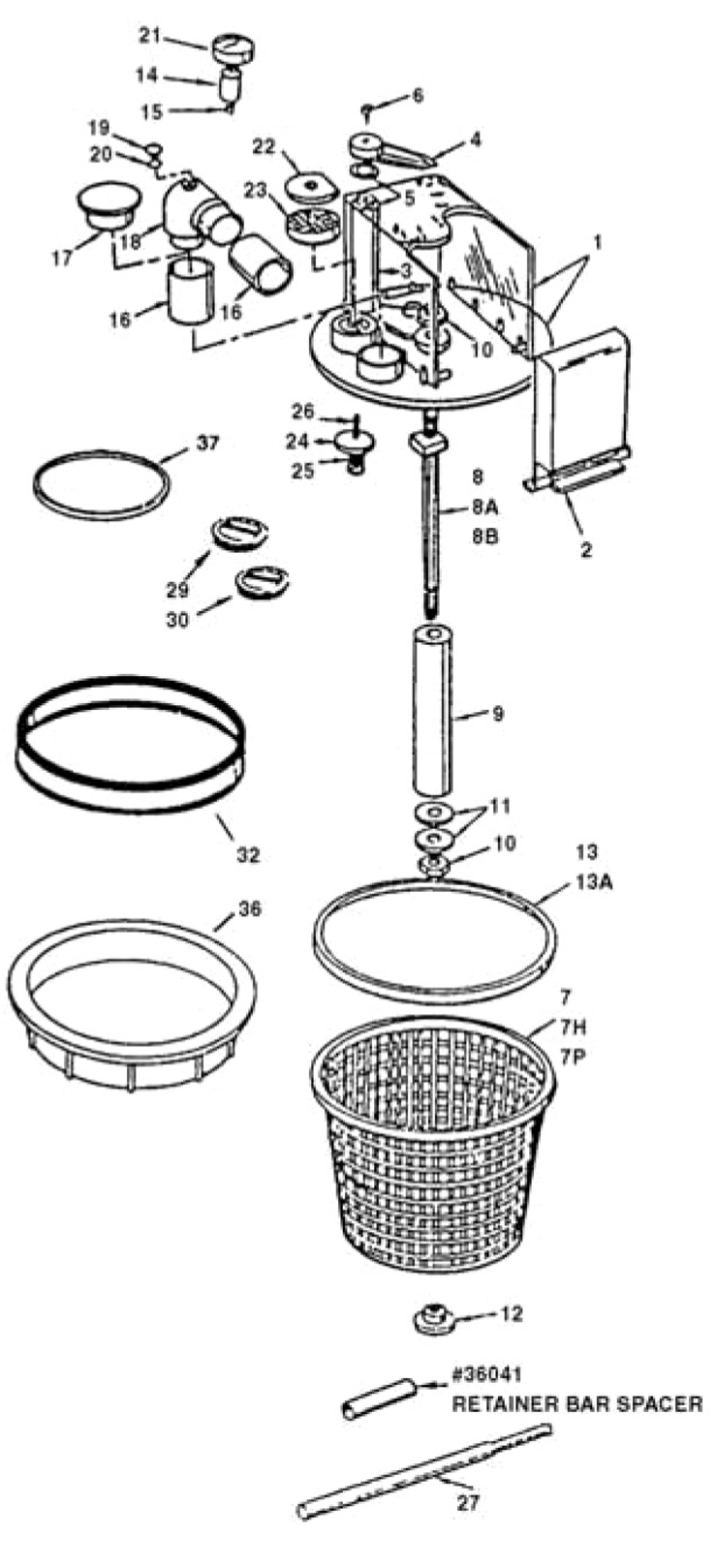

Here is the schematic view you requested:

Category: Maintenance Equipment
Manufacturer name: Pentair
Model Name: Vac-Mate

Pentair VacMate replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 R36026 Top housing & plate assembly (large) R211100 Yes 1 Day(s) $36.91

2

 R36027 Weir assembly Yes 1 Day(s) $3.51

3

 R36028 Control shaft assembly Yes 1 Day(s) $3.51

4

 R36013 Control handle Yes 1 Day(s) $3.51

5

 R36022 Thrust washer Yes 1 Day(s) $0.90

6

 R01045 Control handle screw Yes 1 Day(s) $1.51

7

 R36009 Debris basket only R211100 Yes 1 Day(s) $7.84

7P

 R38007 Debris basket, Pentair style 501021-1022 Yes 1 Day(s) $4.29

7H

 R38012 Debris basket, Hayward style 1075 thru 1086 Yes 1 Day(s) $5.14

8A

 R36063 Basket shaft, Hayward-4-7/8 in. Yes 1 Day(s) $3.37

8B

 R36065 Basket shaft, Pentair-3-5/8 in. No N/A N/A N/A

8

 R36017 Basket shaft R211100-5 1/2 in. Yes 1 Day(s) $3.51

9

 R36003 Lead weight Yes 1 Day(s) $4.75

10

 R01066 Hex nut 3/8-16 Yes 1 Day(s) $0.90

11

 R36016 Spacer washer Yes 1 Day(s) $0.90

12

 R36024 Knob Yes 1 Day(s) $3.51

13A

 R36025 Gasket, Hayward style basket Yes 1 Day(s) $3.34

13

 R36002 Gasket, large, fits R36009 basket Yes 1 Day(s) $3.19

14

 R172204 Coupling, vacuum gauge R211101 Yes 1 Day(s) $8.82

15

 R172050 Nipple, vacuum gauge R211101 Yes 1 Day(s) $3.51

16

 R36030 Cuff Yes 1 Day(s) $3.51

17

 R36019 Cap plug Yes 1 Day(s) $3.51

18

 R36031 90° elbow Yes 1 Day(s) $4.65

21

 R36006 Vacuum gauge Yes 1 Day(s) $22.72

22

 R36023 Anti-vortex plate Yes 1 Day(s) $3.51

23

 R36020 By-pass screen Yes 1 Day(s) $3.51

24

 R36018 Disc, by-pass Yes 1 Day(s) $3.51

25

 R36004 Spring, by-pass Yes 1 Day(s) $3.51

26

 R36021 Adjustment screw Yes 1 Day(s) $0.90

27

 R36033 Retainer bar, long, R211100 Yes 1 Day(s) $4.40

29

 R22011 Threaded plug 2 in. Yes 1 Day(s) $1.78

30

 R22010 Threaded plug 1 1/2 in. Yes 1 Day(s) $1.54

32

 R36046 Gasket, Baker Hydro ring Yes 1 Day(s) $3.51
