SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

Here is the schematic view you requested:

Category: Hydro Fittings
Manufacturer name: Pentair
Model Name: Wall Fittings

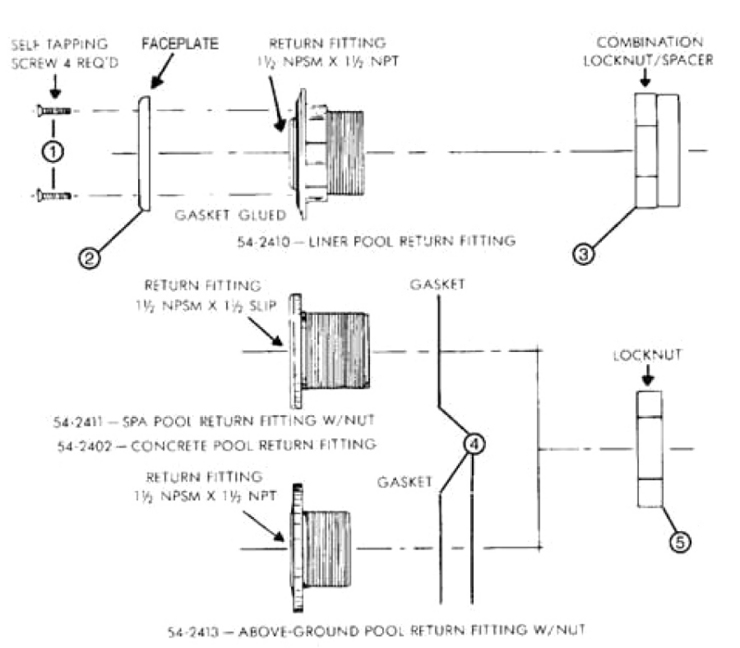

Pentair Wall-Fittings replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 552472 Screw #12 x 1 in. flat phillips, 4 req. Yes 1 Day(s) $0.77

2

 545100 Faceplate - white for 542410 / 86205100 Yes 1 Day(s) $0.74

2

 545101 Faceplate - black for 542420 / 86205101 Yes 1 Day(s) $0.74

2

 545102 Faceplate - dark grey for 86205102 No N/A N/A N/A

2

 545103 Faceplate - grey for 86205103 Yes 1 Day(s) $0.74

4

 552496 Cork gasket Yes 1 Day(s) $0.61

4

 552406 Gasket, 2 req. Yes 1 Day(s) $0.77

5

 154412 Locknut Yes 1 Day(s) $8.26
