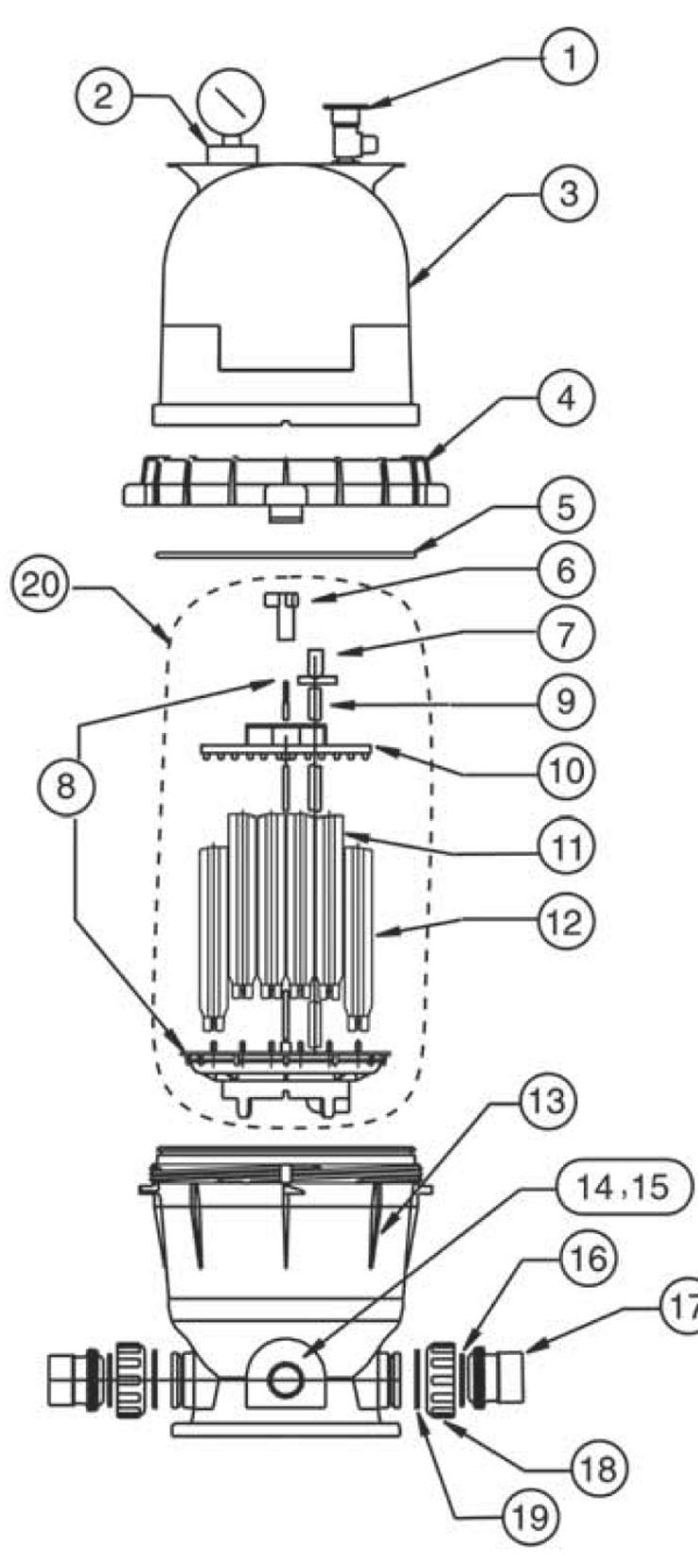

Here is the schematic view you requested:

Category: DE Filter Parts

Manufacturer name: Pentair

Model Name: Warrior System



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
3	190041	Lid, 44/88 GPM filter, almond	Yes	1 Day(s)	$83.61
3	190042	Lid, 66 GPM filter, almond	Yes	1 Day(s)	$78.30
5	8300400	Body O-ring	No	N/A	N/A	N/A
6	39302700	Tie rod knob	Yes	1 Day(s)	$10.69
8	59022500	Tie rod / manifold assy., 44 GPM filter	Yes	1 Day(s)	$41.46
8	59022501	Tie rod / manifold assy, 66 GPM filter	Yes	1 Day(s)	$53.22
9	59011200	Air bleed tube, 44 GPM Filter	Yes	1 Day(s)	$22.41
9	59011300	Air bleed tube, 66 GPM Filter	Yes	1 Day(s)	$23.36
10	59023000	Top grid support	Yes	1 Day(s)	$24.13
11	59009600	Lg, grid assy, 44 GPM filter	Yes	1 Day(s)	$20.38
11	59009700	Lg, grid assy, 66 GPM filter	Yes	1 Day(s)	$20.38
12	59005200	Sm. grid assy, 44 GPM filter	Yes	1 Day(s)	$20.38
12	59005300	Sm. grid assy, 66/88 GPM filter	Yes	1 Day(s)	$20.38
22	170058	Base assy. (a)	Yes	1 Day(s)	$31.26
25	59005800	Grid pack assy, 44 GPM	Yes	1 Day(s)	$116.76
25	59005900	Grid pack assy, 66 GPM	Yes	1 Day(s)	$144.98
