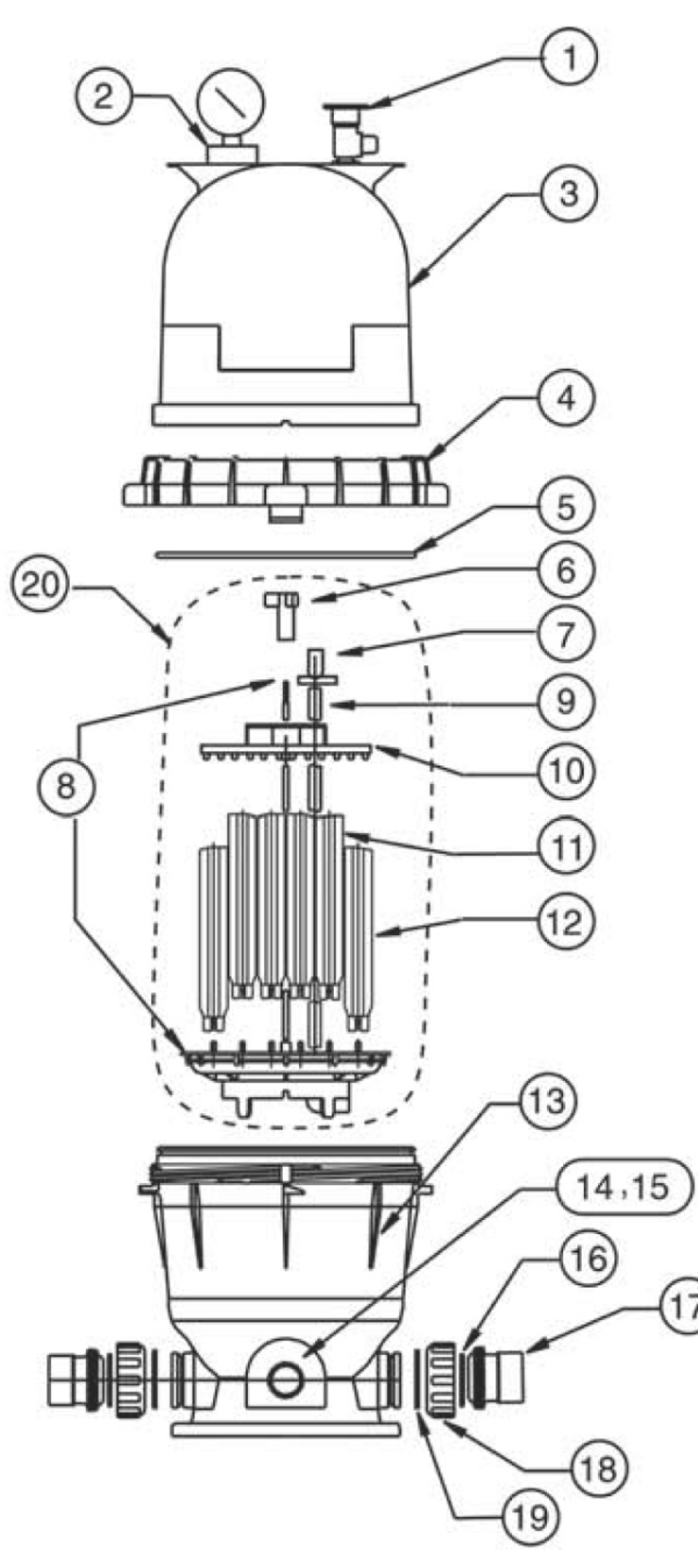

Here is the schematic view you requested:

Category: DE Filter Parts

Manufacturer name: Pentair

Model Name: Warrior



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
3	190041	Lid, 44,88 GPM filter, almond	Yes	1 Day(s)	$83.61
3	190042	Lid, 66 GPM filter, almond	Yes	1 Day(s)	$78.30
6	39302700	Tie rod knob	Yes	1 Day(s)	$10.69
8	59022500	Tie rod / manifold assy., 44 GPM filter (18"")	Yes	1 Day(s)	$41.46
8	59022501	Tie rod / manifold assy., 66 GPM filter (26"")	Yes	1 Day(s)	$53.22
8	59022502	Tie rod / manifold assy., 88 GPM filter (36"")	Yes	1 Day(s)	$48.24
9	59011200	Air bleed tube, 44 GPM filter	Yes	1 Day(s)	$22.41
9	59011300	Air bleed tube, 66 GPM filter	Yes	1 Day(s)	$23.36
9	59011400	Air bleed tube, 88 GPM filter	Yes	1 Day(s)	$7.34
10	59023000	Top grid support	Yes	1 Day(s)	$24.13
11	59009600	Lg. grid, 44 GPM filter (9"" x 16"")	Yes	1 Day(s)	$20.38
11	59009700	Lg. grid, 66 GPM filter (9"" x 24"")	Yes	1 Day(s)	$20.38
11	59009800	Lg. grid, 88 GPM filter (9"" x 36"")	Yes	1 Day(s)	$58.44
12	59005200	Sm. grid, 44 GPM filter (7 1/2"" x 16"")	Yes	1 Day(s)	$20.38
12	59005300	Sm. grid, 66 GPM filter (7 1/2"" x 24"")	Yes	1 Day(s)	$20.38
12	59005400	Sm. grid, 88 GPM filter (7 1/2"" x 36"")	Yes	1 Day(s)	$58.64
20	59005800	Grid pack assy., 44 GPM	Yes	1 Day(s)	$116.76
20	59005900	Grid pack assy., 66 GPM	Yes	1 Day(s)	$144.98
20	59006000	Grid pack assy., 88 GPM	Yes	1 Day(s)	$181.21
