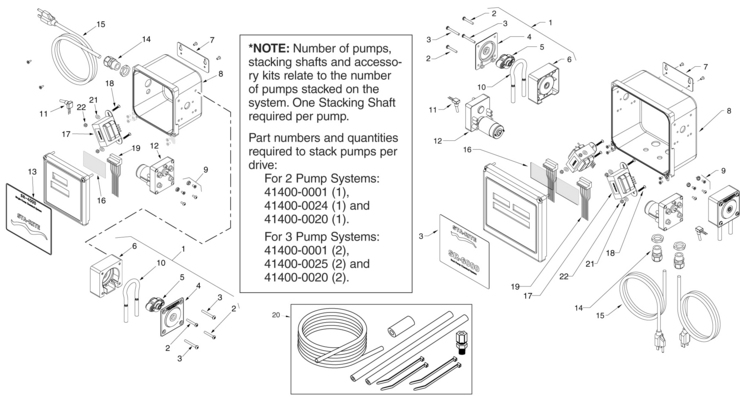

Here is the schematic view you requested:

Category: Chemical Feeders

Manufacturer name: Sta-Rite

Model Name: Chemical Feed Pumps - Models SR-4000 & SR-6000



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	414000025	Stacking Shaft for 3 Pump System	No	N/A	N/A	N/A
-	414000024	Stacking Shaft for 2 Pump System	Yes	1 Day(s)	$10.03
1	414000001	Pump Assembly	Yes	1 Day(s)	$88.29
2	414000002	Screw, 10-32 x 1 1/4" SS Phil.	No	N/A	N/A	N/A
3	414000003	Screw, 10-32 X 1 5/8" SS Phil.	No	N/A	N/A	N/A
4	414000004	Cover	Yes	1 Day(s)	$13.59
5	414000005	Rotor Assembly	Yes	1 Day(s)	$57.72
6	414000006	Pump Housing, Grey	Yes	1 Day(s)	$17.58
7	414000007	Bracket with Mounting Kit	Yes	1 Day(s)	$25.62
8	414010008	Sealed Enclosure (SR-4000)	Yes	1 Day(s)	$116.99
8	414020008	Sealed Enclosure (SR-6000)	No	N/A	N/A	N/A
9	414000009	Hardware Kit, Motor Mount	Yes	1 Day(s)	$2.14
10	414000026	Pump Tube, 1.5cc (not shown)	Yes	1 Day(s)	$17.32
10	414000027	Pump Tube, PT, 2.0cc (not shown)	Yes	1 Day(s)	$17.32
10	414000010	Pump Tube, 3.0cc with coupler	Yes	1 Day(s)	$16.05
10	414000028	Pump Tube, 1.0cc (not shown)	Yes	1 Day(s)	$5.71
11	414000011	Toggle Switch with Seal	Yes	1 Day(s)	$22.53
12	414000013	Motor, 60 RPM, 24VDC	Yes	1 Day(s)	$115.57
13	414020014	Overlay (SR-6000)	No	N/A	N/A	N/A
13	414010014	Overlay (SR-4000)	Yes	1 Day(s)	$51.37
14	414000015	Cable Clamp, Waterproof	No	N/A	N/A	N/A
15	414000016	Power Cord	No	N/A	N/A	N/A
16	414000017	Circuit Board	Yes	1 Day(s)	$176.51
17	414000018	Transformer	Yes	1 Day(s)	$60.94
18	414000019	Screw, #8-32 x 3/4"	No	N/A	N/A	N/A
19	414000020	Wiring Harness	No	N/A	N/A	N/A
20	414000021	Accessory Kit	Yes	1 Day(s)	$50.36
21	414000022	Washer, #8	No	N/A	N/A	N/A
22	414000023	Hex Nut, #8-32, SS	No	N/A	N/A	N/A
