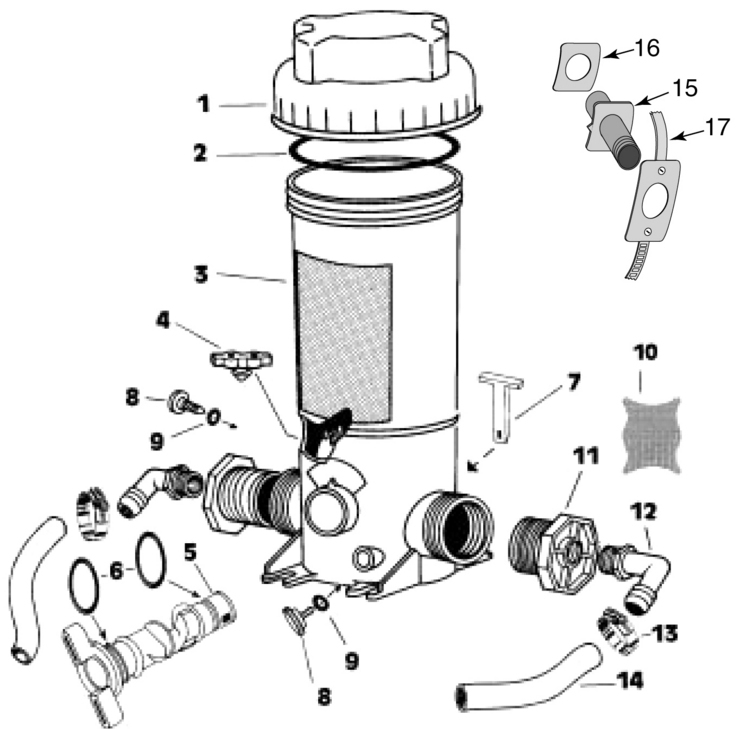

Here is the schematic view you requested:

Category: Maintenance Equipment

Manufacturer name: Sta-Rite

Model Name: Chlorinator



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
1	413010141	Cap with O-Ring (Incl. Key No. 2)	No	N/A	N/A	N/A
2	413010192	Cap O-Ring	Yes	1 Day(s)	$16.66
4	413010948	Pressure Relief Valve	No	N/A	N/A	N/A
5	413010944	Control Dial w/ Assembly Kit (Incl. Key Nos. 6,7)	No	N/A	N/A	N/A
6	413010145	Control Dial O-Ring Kit	No	N/A	N/A	N/A
7	413010146	Control Dial Locking Pin	No	N/A	N/A	N/A
8	413010994	Drain Plug with O-Ring (Incl. Key No. 9)	No	N/A	N/A	N/A
10	413010966	Mesh Screen	No	N/A	N/A	N/A
11	413010985	1 1/2 X 1/2"" Bushing (a)	No	N/A	N/A	N/A
12	413010780	90° Elbow (a)	No	N/A	N/A	N/A
13	413010769	Small Clamp (a)	No	N/A	N/A	N/A
14	413010770	8' PVC Tubing (a)	No	N/A	N/A	N/A
15	413010779	Venturi Scoop (a)	No	N/A	N/A	N/A
16	413010785	Scoop Gasket (a)	No	N/A	N/A	N/A
17	413010791	Scoop Clamp (a)	No	N/A	N/A	N/A
