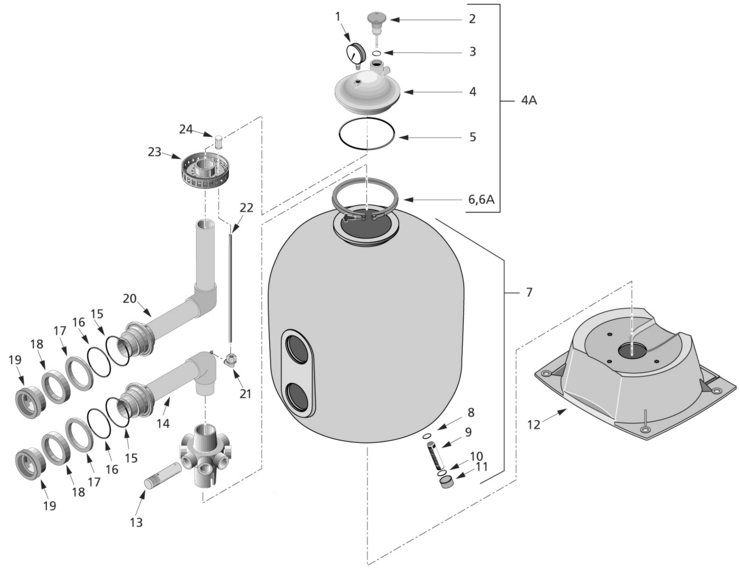

Here is the schematic view you requested:

Category: Sand Filter Parts

Manufacturer name: Sta-Rite

Model Name: Cristal-Flo High-Rate Sand Filters - Models S-200BP-1M, S240BP-1M, S240BP-2S



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	321654030	Clamp Warning Decal	No	N/A	N/A	N/A
-	312857075	Cap plug	No	N/A	N/A	N/A
-	149350100	Slide Valve - Models S200BP-1M only	No	N/A	$142.33
-	182010110	Multiport Valve	No	N/A	$128.75
3	355057439	O-Ring	No	N/A	$1.45
4A	242060102S	Lid Assembly (Incl. Key Nos. 2,3,4,5,6,6A)	No	N/A	N/A	N/A
4	242060002	Lid	No	N/A	$42.57
5	U9369	O-Ring, Lid Flange	Yes	1 Day(s)	$10.74
6	WC11987A	V Clamp w/Knob	No	N/A	N/A	N/A
7	242070011S	Filter Tank Assembly(Incl.KeyNos.8,9,10,11)	No	N/A	N/A	N/A
8	U9370	O-Ring, Lateral	Yes	1 Day(s)	$1.14
9	242010058	Drain Lateral	No	N/A	$5.28
10	U9371	O-Ring, Drain Cap	Yes	1 Day(s)	$2.11
11	149650025	Drain Cap	Yes	1 Day(s)	$16.16
12	239000105B	Pedestal	No	N/A	N/A	N/A
12	239100005B	Pedestal - Models S200BP-1M only	No	N/A	N/A	N/A
13	247000075	Lateral	Yes	1 Day(s)	$8.60
13	246000003	Lateral - Models S200BP-1M only	Yes	1 Day(s)	$5.51
14	242060101	Outlet Pipe Assembly	No	N/A	N/A	N/A
15	355050326	O-Ring	No	N/A	$9.79
16	355050325	O-Ring	No	N/A	$8.59
17	242060004	Seal Ring	No	N/A	$3.81
18	247520049	Tank Nut	No	N/A	$17.13
19	U11198P	Union Half	Yes	1 Day(s)	N/A	N/A
20	242070100	Inlet Pipe Assembly	No	N/A	N/A	N/A
21	WC7884P	Compression Elbow	Yes	1 Day(s)	$7.54
22	WC37385P	Air Vent Tube	No	N/A	N/A	N/A
22	WC37384P	Air Vent Tube - Models S200BP-1M only	No	N/A	N/A	N/A
23	149620106	Diverter Assembly	No	N/A	$6.16
24	WC8126	Air Vent Filter	Yes	1 Day(s)	$5.50
