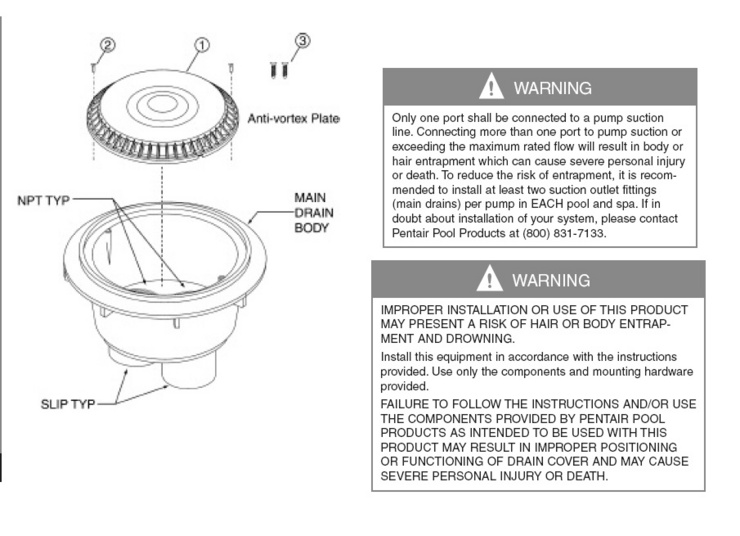

Here is the schematic view you requested:

Category: Main Drains and Grates

Manufacturer name: Sta-Rite

Model Name: Dual Bottom Port Main Drains



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	542016	7-3/4"" Frame and anti-vortex plate, white	Yes	1 Day(s)	$12.64
-	542026	7-3/4"" Frame and anti-vortex plate, black	Yes	1 Day(s)	$21.15
1	552504	Anti-vortex plate, white (prior to 4/1/00)	Yes	1 Day(s)	$9.07
1	86105911	Anti-vortex plate, black	Yes	1 Day(s)	$6.81
1	552514	Anti-vortex plate, black (prior to 4/1/00)	No	N/A	N/A	N/A
1	86105915	Anti-vortex plate, dark gray	Yes	1 Day(s)	N/A	N/A
2	552538	Screw, No. 8 X 3/4"" SS (for round grate)	Yes	1 Day(s)	N/A	N/A
3	552539	Screw, No. 8 X 1 1/4"" SS (for anti-vortex plate)	Yes	1 Day(s)	$0.77
