SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

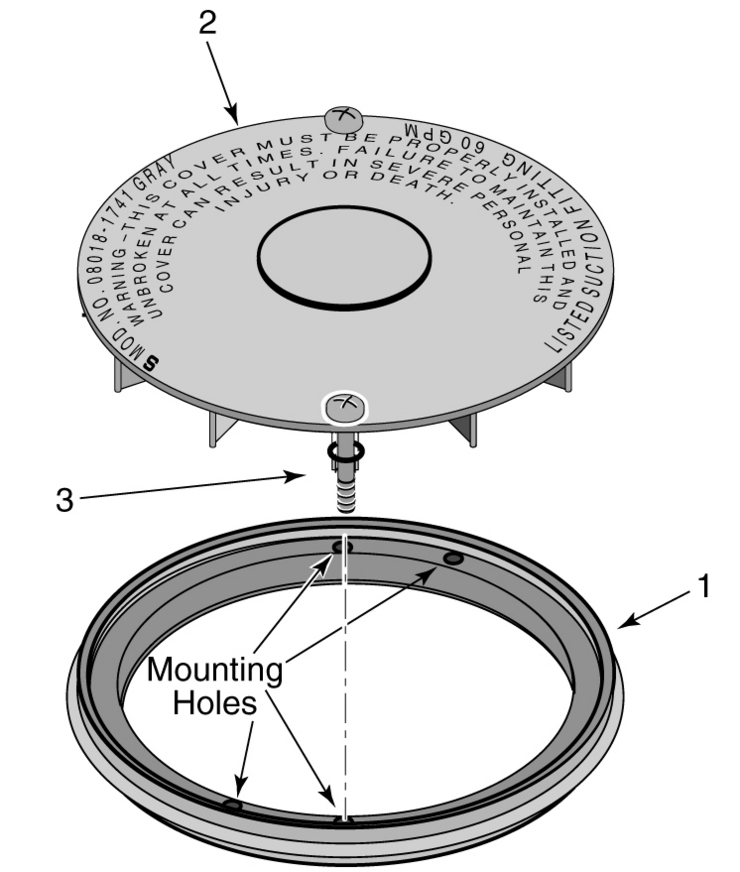

Here is the schematic view you requested:

Category: Main Drains and Grates
Manufacturer name: Sta-Rite
Model Name: Frame & Grate Assembly - Plate

Sta-Rite Frame-Grate-Assembly-Plate replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

1

 070170015 Frame - White No N/A N/A N/A

1

 070170015B Frame - Gray No N/A N/A N/A

1

 070170015A Frame - Black No N/A N/A N/A

2

 70170044 Anti-Vortex Plate - White No N/A N/A N/A

2

 070170044B Anti-Vortex Plate - Gray No N/A N/A N/A

2

 070170044A Anti-Vortex Plate - Black No N/A N/A N/A

3

 070170303 Mounting Screw Kit No N/A N/A N/A
