SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

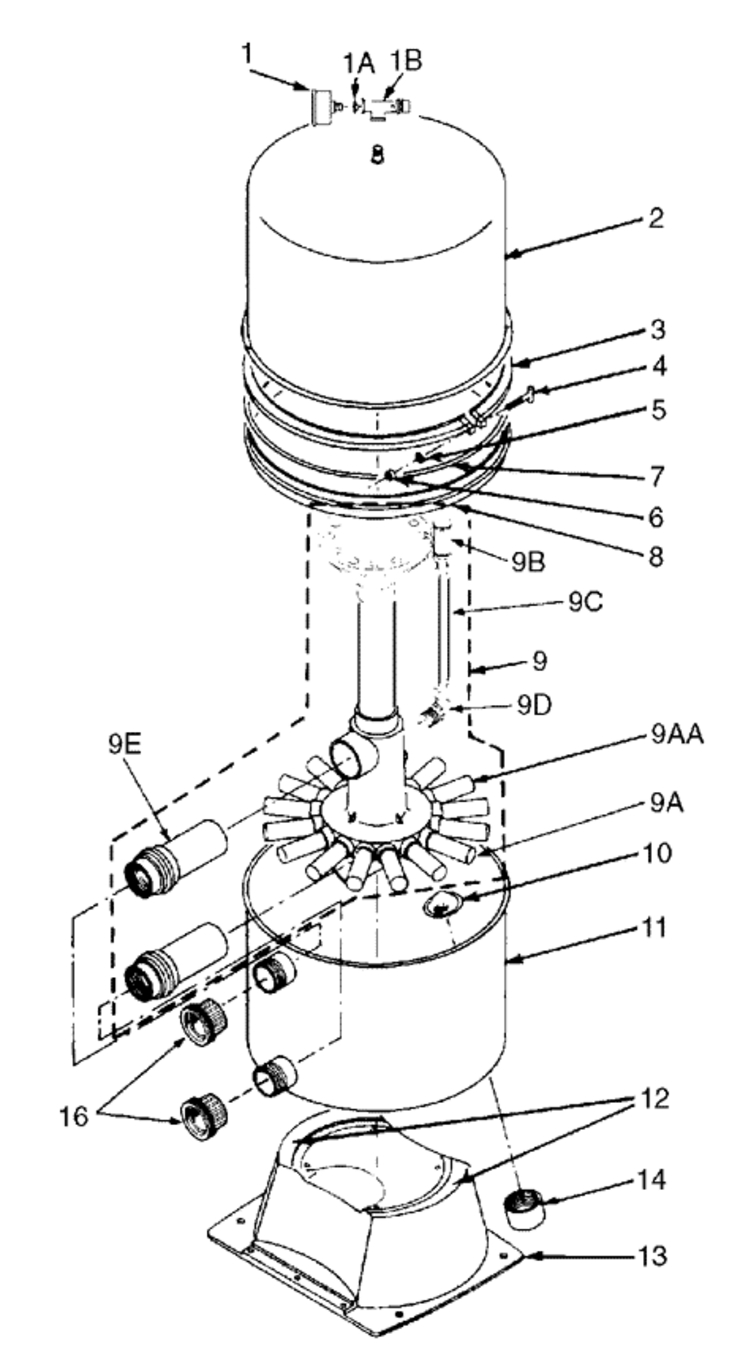

Here is the schematic view you requested:

Category: Sand Filter Parts
Manufacturer name: Sta-Rite
Model Name: High-Rate Sand Filters - Models HRS16-01, HRS20-01, HRS24-01

Sta-Rite HighRate-Sand-Filters-Models-HRS1601-HRS replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 247000029 Lateral Extension Adapter Yes 1 Day(s) $3.72

4

 307670003 ""T"" Bolt, 5/16"" No N/A $11.22

5

 389070062 Washer 5/16"" No N/A N/A N/A

6

 354020279 HexNut, 5/16 18 No N/A $3.19

7

 247000068 O-Ring - Model HRS16-01 Yes 1 Day(s) $22.57

7

 247000072 O-Ring - Model HRS20-01 Yes 1 Day(s) $26.41

7

 247000073 O-Ring - Model HRS24-01 Yes 1 Day(s) $34.76

8

 247000067 Retaining Ring - Model HRS24-01 No N/A N/A N/A

8

 247000065 Retaining Ring - Model HRS20-01 No N/A N/A N/A

8

 247000063 Retaining Ring - Model HRS16-01 No N/A N/A N/A

9C

 WC37384P Tube No N/A N/A N/A

9B

 WC8126 Air Bleed Filter Yes 1 Day(s) $5.50

9AA

 247350011 Lateral,Short - Models HRS20-01 & HRS24-01 Yes 1 Day(s) $6.23

9A

 246000003 Lateral Yes 1 Day(s) $5.51

9A

 247350011 Lateral - Model HRS16-01 Yes 1 Day(s) $6.23

9D

 WC7884P Compression Elbow Yes 1 Day(s) $7.54

9

 247350001 Internal Assembly Yes 1 Day(s) $307.52

9E

 247350015 Tank Fitting Assembly Yes 1 Day(s) $28.58

10

 239000046 Screen, Drain No N/A N/A N/A

11

 247350005 Lower Shell No N/A N/A N/A

12

 376850006A Tape Yes 1 Day(s) $1.97

13

 239100005 Base - Model HRS16-01 Yes 1 Day(s) $97.74

13

 239000105 Base - Model HRS20-01 Yes 1 Day(s) $102.61

13

 239010005 Base - Model HRS24-01 Yes 1 Day(s) $139.38

14

 312854081 Pipe Cap No N/A N/A N/A

16

 U111208P Union Adapter Assembly No N/A N/A N/A
