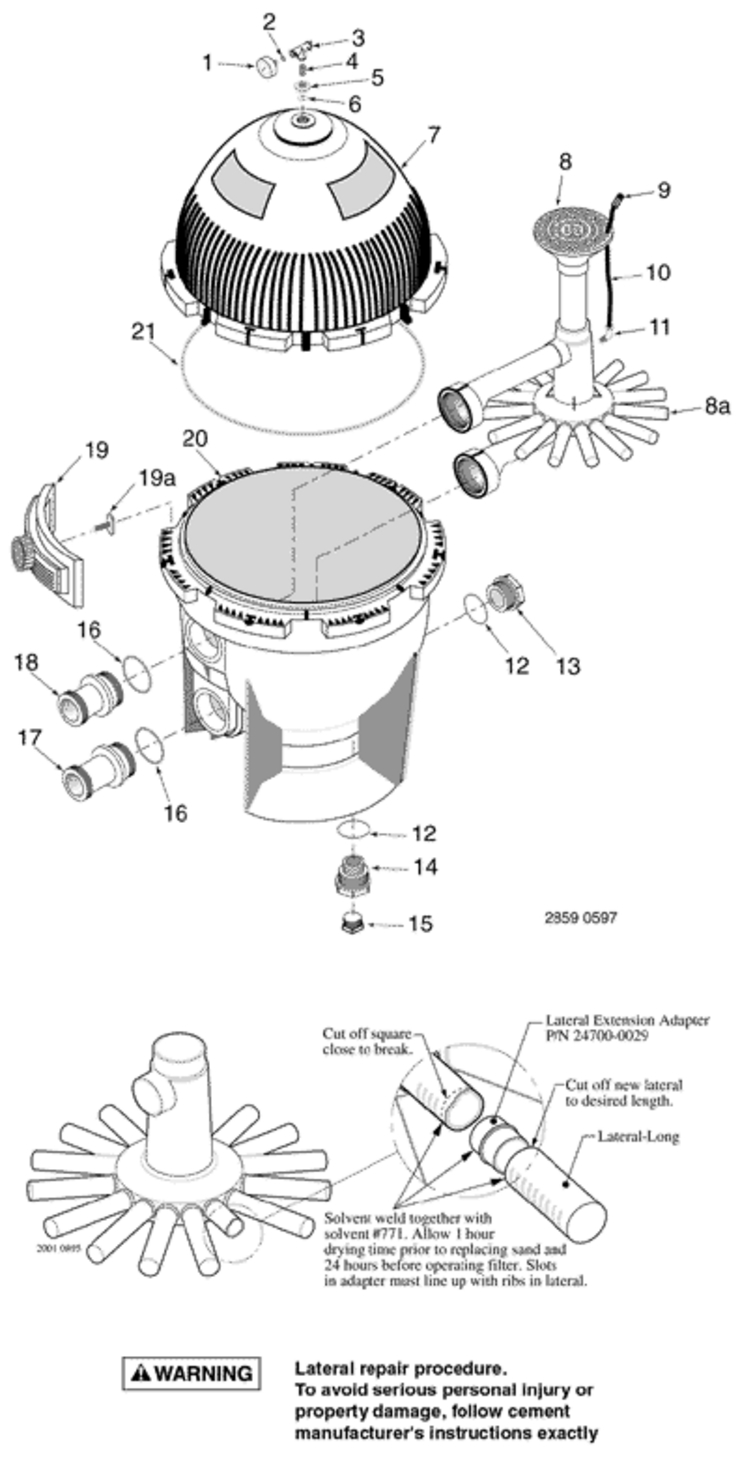

Here is the schematic view you requested:

Category: Sand Filter Parts

Manufacturer name: Sta-Rite

Model Name: System 3 Sand Filters - Models S7S50 & S8S70



KEY #	SKU #	Product Description	In-Stock	Ships In	Our Price	Qty
-	250212025	System-3 Sand Conversion Kit (b)	No	N/A	$108.06
-	250212021	System-3 Sand Conversion Kit (b)	Yes	1 Day(s)	$98.80
-	247000029	Lateral Extension Adapter	Yes	1 Day(s)	$3.72
7	249010100S	Collector Assembly (Incl.laterals)	Yes	1 Day(s)	$395.60
8	WC8126	Air Bleed Filter-Blue	Yes	1 Day(s)	$5.50
9	WC37386P	Vent Tube	Yes	1 Day(s)	$3.42
10	WC7884P	Elbow Male Parflex	Yes	1 Day(s)	$7.54
11	249000002	Lateral - Model S7S50	Yes	1 Day(s)	$5.53
11	249000003	Lateral - Model S7S70	No	N/A	N/A	N/A
14	249000505	Drain Fitting	No	N/A	$15.52
17	249000500	Tank Fitting	No	N/A	$29.52
18	249000501	Tank Fitting	No	N/A	$26.29
