SWIMMING POOL PARTS: SEARCH MORE THAN 23,000 POOL PARTS ONLINE

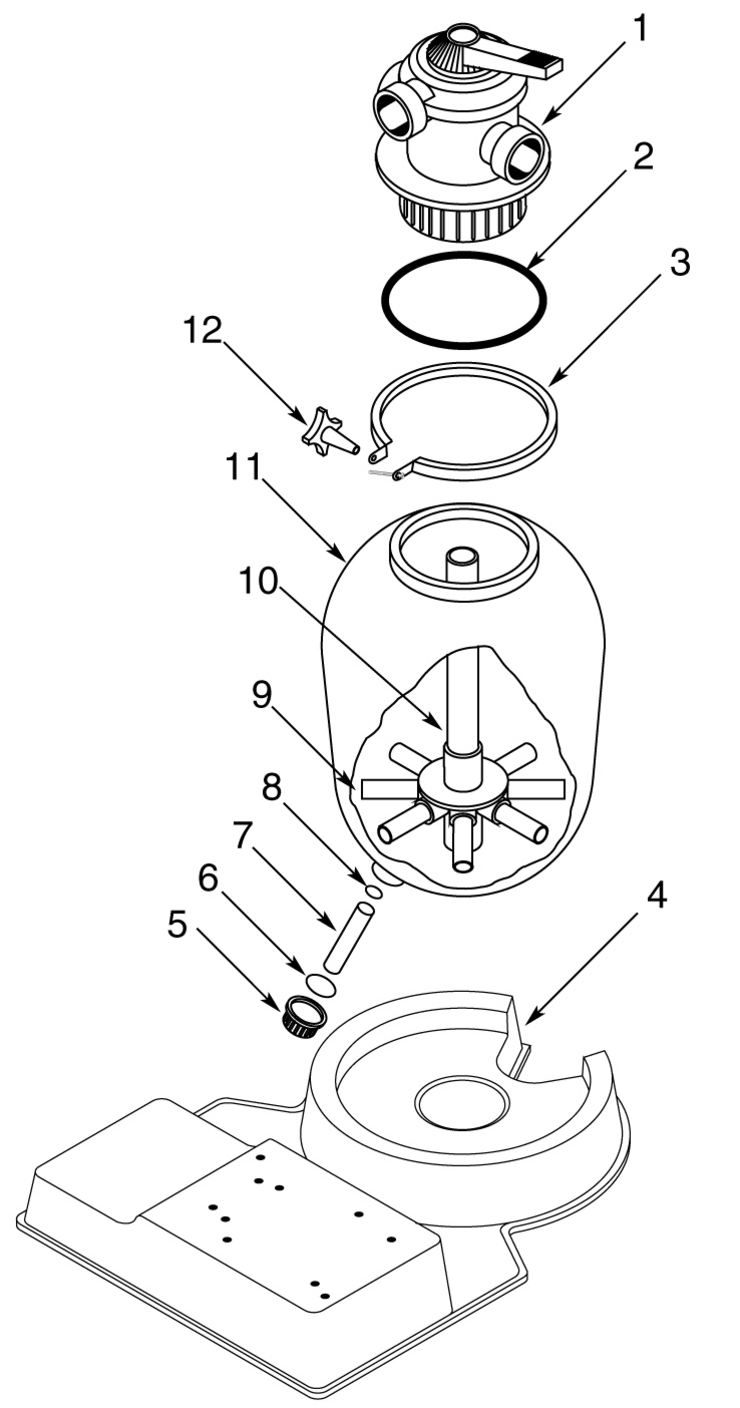

Here is the schematic view you requested:

Category: Sand Filter Parts
Manufacturer name: Sta-Rite
Model Name: Waterford Systems Filter Tank

Sta-Rite Waterford-Systems-Filter-Tank replacement parts

KEY # SKU # Product Description In-Stock Ships In Our Price Qty

-

 242010013 Sand Shield No N/A N/A N/A

1

 WC112148A Multi-Port Valve Kit(a) No N/A N/A N/A

2

 U9369 O-Ring, Tank Flange Yes 1 Day(s) $10.74

3

 WC1987A V-Clamp Yes 1 Day(s) $99.91

4

 242010055P Pedstal Platform No N/A N/A N/A

5

 149650025 Drain Cap Yes 1 Day(s) $16.16

6

 U9371 O-Ring, Drain Cap Yes 1 Day(s) $2.11

7

 246000003 Drain Lateral Tube Yes 1 Day(s) $5.51

8

 U9370 O-Ring, Lateral Tube Yes 1 Day(s) $1.14

9

 246000003 Lateral Tube Yes 1 Day(s) $5.51

10

 242000110 Collector Hub Assembly (a) Yes 1 Day(s) $59.18

10

 WC137516P Collector Hub Assembly (b) Yes 1 Day(s) $66.74

10

 WC137517P Collector Hub Assembly (c) Yes 1 Day(s) $68.82

11

 242001000B Tank Assembly No N/A N/A N/A
